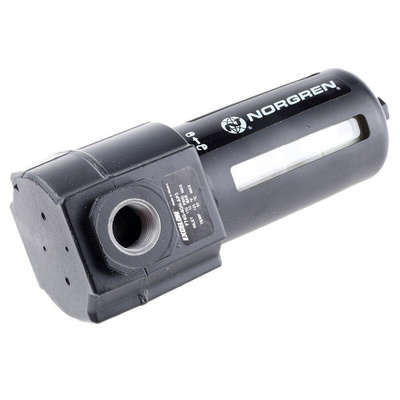

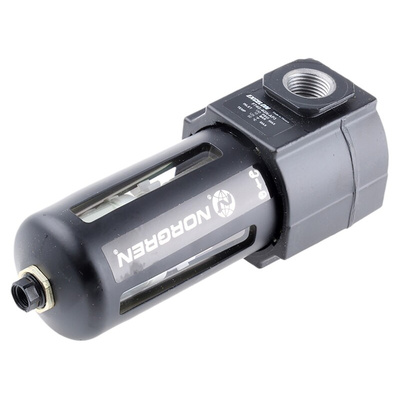

F74G-4GN-AP3, Norgren F74G series 40μm G 1/2 10 bar Pneumatic Filter with Automatic drain, Фильтр

IMI Norgren Pneumatic Filter, 1/8BSP Automatic Drain Connection, 0.81kg Weight - Excelon Series - F74G-4GN-AP3

Use this filter from IMI Norgren to keep contaminants out of your pneumatic network and ensure a seamless flow of compressed air. With a filtration size of 40μm, the unit effectively traps small dust and moisture particles, ensuring only air passes through and improving equipment performance. It has an aluminium body to withstand potentially damaging impact or corrosion. This filter also features an automatic drain to get rid of accumulated condensate at a set pressure, reducing the need for manual supervision.

Features & Benefits

• Maximum operating pressure of 10 bar for use in heavy-duty applications
• G1/2 port connection eliminates the need for complex installation tools
• Broad operating temperature range of -34°C to +50°C for use in challenging conditions
• Transparent bowl to hold filtered condensate and particles
• Neoprene and nitrile elastomers to prevent leakages and help it perform at its best

Applications

• Food processing plants
• Robotics and automation

How do I monitor the condensate level on this filter?

The filter's condensate bowl is transparent so you can monitor the level at a glance and manually drain it if necessary.

Standards

ISO 8573-1, Class 5 & Class 3

Filters

F74G Series Pneumatic General Purpose Filter Product Data
