B74G-4GK-AP3-RMN, Norgren B74G Filter Regulator, 40μm, G 1/2, Automatic, Сборка

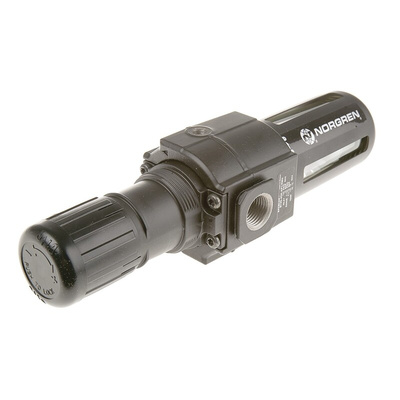

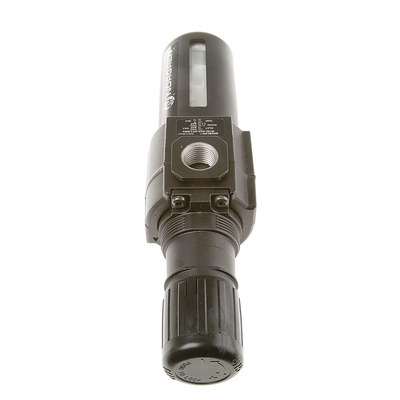

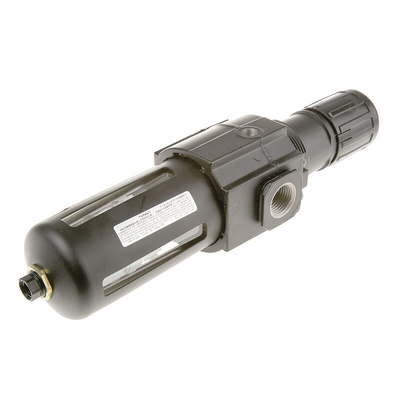

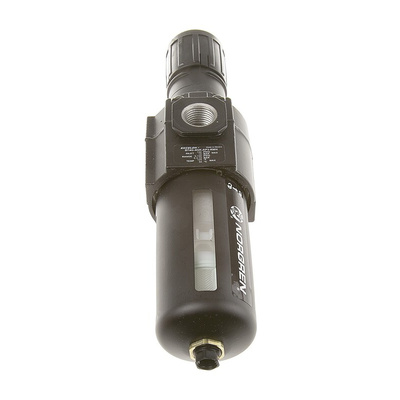

IMI Norgren B74G Series Pneumatic Filter Regulator, G1/2- B74G-4GK-AP3-RMN

Ensure clean air flow and control air pressure in your pneumatic system with this Norgren B74G series filter regulator.

This unit has G1/2 port connection and 40μm filtration size. It is designed for use with compressed air only: the filter effectively removes contaminants such as water and particles, whilst the regulator allows the system to maintain constant air pressure. This helps to minimise wear on pneumatic equipment, ensuring longer service life and greater efficiency. The regulator has a durable aluminium body and bonnet, brass valve, and uses a transparent polycarbonate bowl featuring a steel guard. The temperature range for this device is -34°C to 50°C.

Features and Benefits:

• 0.3 bar to 10 bar pressure range
• Automatic drain without gauge
• Push-to-lock adjusting knob
• Enables easy in-line or modular installation with other Excelon products
• Relieving diaphragm

Note: Typical flow data is accurate with a 10bar inlet pressure, a 6.3 bar set pressure and a 1bar drop. The maximum inlet pressure is 10bar.

What are the advantages of filter regulators?

Filter regulators use space more efficiently as they combine two separate units, the filter and the regulator, into one. They also help to limit leakage as there are less connections with air.

Datasheet - B74G-4GK-AP3-RMN
