B74G-6GK-AP3-RMN, Norgren B74G Filter Regulator, 40μm, G 3/4, Automatic, Сборка

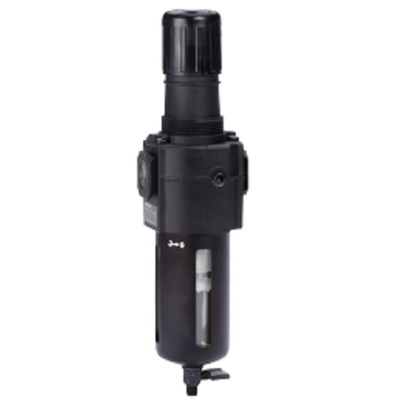

IMI Norgren B74G Series Pneumatic Filter Regulator, G3/4 - B74G-6GK-AP3-RMN

Optimise your compressed air system with the IMI Norgren B74G series filter regulator. This combination unit uses a filter and a regulator to clean the air flow of contaminants such as water and particles, whilst also maintaining constant air pressure. This helps to ensure that your pneumatic equipment operates efficiently and protects service life.

This B74G filter regulator features G3/4 port connection and 40μm filtration size. The regulator has a durable aluminium body and bonnet, brass valve, and uses a transparent polycarbonate bowl featuring a steel guard. The temperature range for this device is -34°C to 50°C.

Features and Benefits:

• Push-to-lock adjusting knob which locks in pressure setting
• Enables easy in-line or modular installation with other Excelon products
• 0.3 bar to 10 bar pressure range
• Automatic drain without gauge
• Relieving diaphragm

Note: Typical flow data is accurate with a 10bar inlet pressure, a 6.3 bar set pressure and a 1bar drop. The maximum inlet pressure is 10bar.

What are the advantages of filter regulators?

Filter regulators use space more efficiently as they combine two separate units, the filter and the regulator, into one. They also help to limit leakage as there are less connections with air.

Datasheet - B74G-6GK-AP3-RMN
