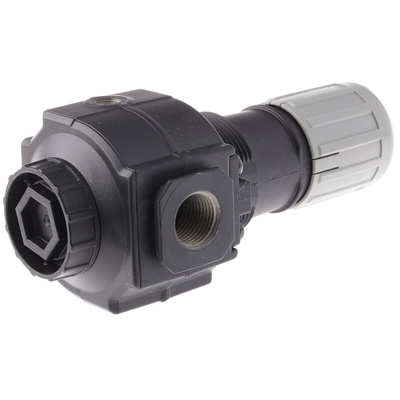

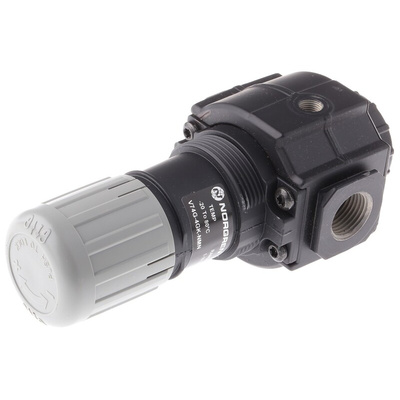

Norgren V74G Pressure Relief Valve G 1/2, V74G-4GK-NMN, Фитинг

IMI Norgren Pressure Relief Valve, Nitrile Rubber Seal, 0.3 to 10 Bar Operating Pressure Range - Excelon Series - V74G-4GK-NMN

Keep your pneumatic system running in peak condition with this pressure relief valve from IMI Norgren. It releases compressed air into the atmosphere if internal pressures exceed a set value. This helps avoid dangerous spikes that could damage your equipment. Thanks to the strong but lightweight aluminium body material, this compact piece of kit weighs in at just 680g, so it adds minimal strain to your equipment. For maximum safety, the push-to-lock adjustment knob means you can't accidentally change the settings with a stray knock, so you can rely on this capable device when the pressure is on.

Features & Benefits

• Choose from inline or modular installation for versatility
• Durable acetal resin handle material stands up to the stresses of heavy-industrial use
• Maximum 20 bar inlet pressure can cope with high-level compressed air build-up

Applications

• Spray-paint systems
• Process control equipment
• Manufacturing facilities

Is this valve suitable for use in low temperatures?

Yes. Thanks to a broad operating temperature range of -20°C to +80°C, this rugged device is comfortable at either extreme. If it's going to drop below a chilly +2°C, though, you'll need to make sure that the air supply is dry enough to avoid ice crystal formation.
