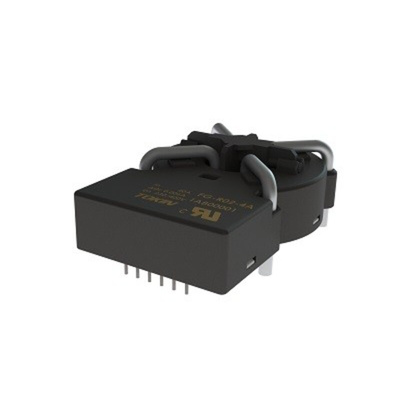

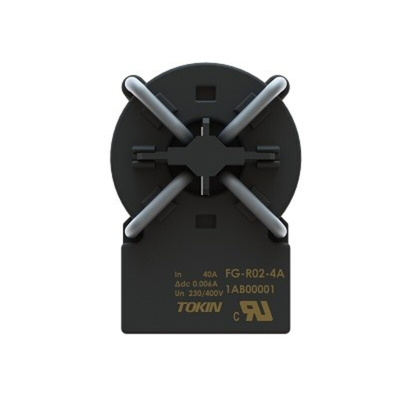

FG-R02-4A, KEMET FG Series Fluxgate Current Sensor, +/-50mA Input, 4A, 6 → 20 mA Output, 34.45mm Bore, 5 V, Трансформатор тока

The KEMET fluxgate based residual current sensor is a high-sensitivity AC and DC leakage current sensor with individual open drain alarms and an analogue output for leakage current indication. In addition, its integrated test coil can be initiated by a test input to perform a functional alarm test. Typical applications include residual current sensor for In-Cable Control and Protection Devices (IC-CPD) or wall box.

Open-loop, fluxgate-based current sensor
Digital output of fault detection
Conform to IEC 62752:2016/A1:2018
Conform to IEC 62955:2018 (Conditional)
Conform to UL 2231-2
RoHS compliant
3000 A surge current capability

Datasheet - FG-R02-4A
