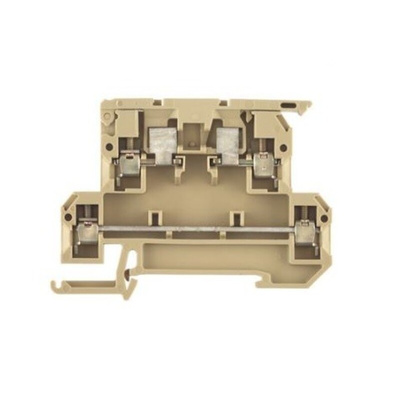

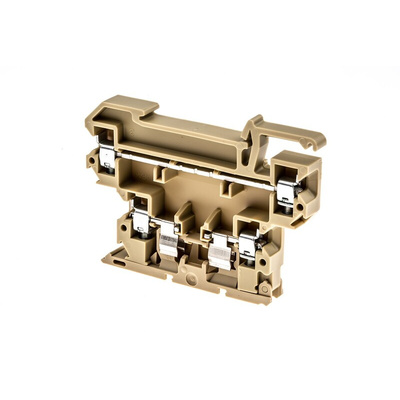

9503310000, Weidmuller KDKS Series Brown Fused DIN Rail Terminal, 4mm², Double-Level, Screw Termination, Fused

Fused, Feedthrough and Earth

This flexible terminal block enables a fuse connection via the top level, a straight feedthrough middle level and, on the KDKS1/PE, an earth connection to the DIN rail by the bottom level. Fuse of 20x5mm or 25x5mm may be fitted.

Note

The voltage and current ratings are to VDE ratings.

Warning

With full blown fuse the follow on circuit is still under current. Disconnect lever to open circuit.

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

Weidmuller Fused DIN Rail Terminal, 4 Connections, 26 to 12AWG Wire Size - KDKS Series - 9503310000

Stop current surges in their tracks with this fused DIN rail terminal from Weidmuller. When excess power enters the system, the fuse will take the brunt of it, keeping your machines safe. You'll benefit from double the protection with this handy piece of kit as its two levels can house up to four wires at the same time. Thanks to its broad wire size range between 26 and 12AWG, it'll see your devices through thick and thin connections.

• Snap-on mounting for speedy and tool-free attachment to a DIN rail
• Wide operating temperature range between -50°C and +100°C for use in challenging environments
• PA66 body is resistant to heat and wear
• Pivoting design of fuse holder enables flexible assembly

Applications

• HVAC systems
• Server rooms
• Automotive industry

What type of fuse should I use with this rail terminal?

This DIN rail terminal is designed to work with a glass cartridge fuse that has an industry-standard size of 20 (L) x 5mm (W). Thanks to the clear glass body, you can see through it easily to know when the fuse is blown and needs replacing.

Approvals

UL

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

Fused feedthrough TerminalS Data Sheet
