RS PRO Type K Thermocouple 25mm Length, 10mm Diameter → +250°C

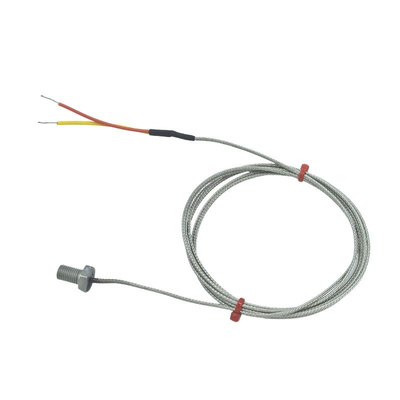

RS PRO ANSI M10 x 25mm Type K Bolt Thermocouple (2m)

A reliable and consistent Type K bolt thermocouple for the direct measurement of temperature in engines, boilers, industrial equipment and machinery. Comprising of an M10x25mm bolt sensor connected to a 2m Glassfibre Stainless Steel braided cable terminating in ANSI colour coded bare wire tails.
Bolt sensors are designed to be screwed directly into the surface or body of the machinery being measured providing a fast response time and very accurate measurements and are suitable for temperatures up to 250°C.
The Type K thermocouple features grounding on the bolts reducing the risk of electric shocks and the Glassfibre insulated Stainless Steel braided cable protects against wearing and mechanical stresses, and features excellent heat and thermal resistance.
A hardwearing, reliable and accurate bolt type Type K thermocouple suitable for harsh industrial environments.

Features and Benefits

M10 x 25mm Bolt thermocouple
1mm pitch
Type K
Bare tails
Glassfibre Stainless Steel braided cable
Grounded junction
Cable length of 2 m
Maximum temperature measurement of +250°C
ANSI colour coded

Standards and Approvals: ANSI MC96.1

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
