RS PRO Type K Thermocouple 13mm Length, 10mm Diameter → +250°C

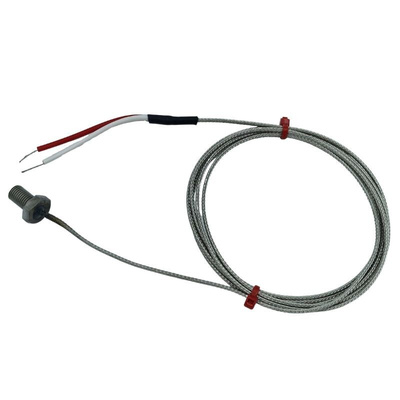

RS PRO JIS M10 x 13mm Type K Bolt Thermocouple (2m)

A reliable and consistent Type K bolt thermocouple for the direct measurement of temperature in engines, boilers, industrial equipment and machinery. Comprising of an M10x13mm bolt sensor connected to a 2m Glassfibre insulated Stainless Steel braided cable terminating in JIS colour coded bare wire tails.
Bolt sensors are designed to be screwed directly into the surface or body of the machinery being measured providing a fast response time and very accurate measurements and are suitable for temperatures up to 250°C.
The Type K thermocouple features grounding on the bolts reducing the risk of electric shocks and the Glassfibre Stainless Steel braided cable protects against wearing and mechanical stresses, and features excellent heat and thermal resistance.
A hardwearing, reliable and accurate bolt type Type K thermocouple suitable for harsh industrial environments.

Features and Benefits

M10 x 13mm Bolt thermocouple
1mm pitch
Type K
Bare tails
Glassfibre Stainless Steel braided cable
Cable length of 2 m
Grounded Junction
Maximum temperature measurement of +250°C
JIS colour coded

Standards and Approvals: JIS

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
