RS PRO Type K Temperature Sensor 4mm Length, 6mm Diameter → +400°C

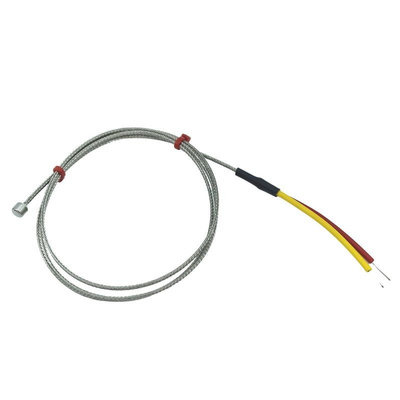

RS PRO ANSI Type K Brake Pad Thermocouple (6mm)

A reliable and hardwearing Type K ANSI thermocouple designed for the accurate temperature monitoring of brake pads. Comprising of a with a Glassfibre insulated Stainless Steel braided cable with a measuring tip sealed in Fortafix high temperature Ceramic paste for a secure hold.
Designed to be embedded directly into pads being measured providing a fast response time and accurate measurements up to temperatures up to 400°C.
Built for accuracy the Type K brake pad thermocouple features a grounded junction increasing measurement accuracy and stability and the Glassfibre Stainless Steel braided cable protects against wearing and mechanical stresses, and features excellent heat and thermal resistance.
A hardwearing, reliable and accurate brake pad Type K thermocouple suitable for harsh industrial environments.

Features and Benefits

Brake pad thermocouple
Type K
6mm probe diameter
4mm tip length
Tip secured with Fortafix Ceramic paste
Bare tails
Glassfibre Stainless Steel braided cable
Cable length of 1 m
Maximum temperature measurement of +400°C
ANSI colour coded

Standards and Approvals: ANSI MC96.1
