RS PRO Type K Thermocouple 12.7mm Length, 19.1mm Diameter, -50°C → +250°C

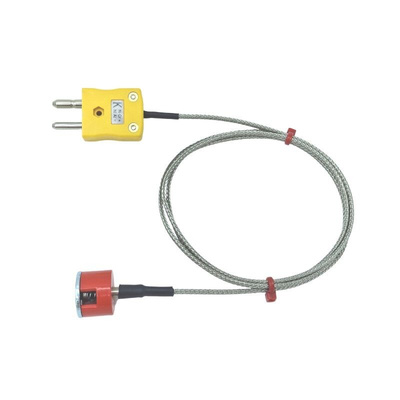

RS PRO ANSI Type K Button Magnet Thermocouple (1.9kg Pull)

A reliable and hardwearing Type K thermocouple featuring a button magnet for quick and easy localised temperature measurements. Comprising of 1.9kg pull magnet thermocouple with a Glassfibre insulated Stainless Steel braided cable terminating in a robust type K plug.
Constructed from tough thermoplastic the Type K plug is ANSI colour coded and the Glassfibre insulated Stainless Steel braided cable protects against wearing and mechanical stresses, EMI, and features excellent heat and thermal resistance.
A hardwearing, reliable and accurate magnet Type K thermocouple suitable for harsh industrial environments.

Features and Benefits

Magnet thermocouple
1.9kg pull
Type K
19.1mm magnet diameter
12.7mm magnet height
Terminated in standard Type K plug
Glassfibre Stainless Steel braided cable
Core/ strands 7/0.2mm
Cable length of 1m
Minimum temperature measurement -50°C
Maximum temperature measurement of +250°C
ANSI colour coded

Standards and Approvals: ANSI MC96.1

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
