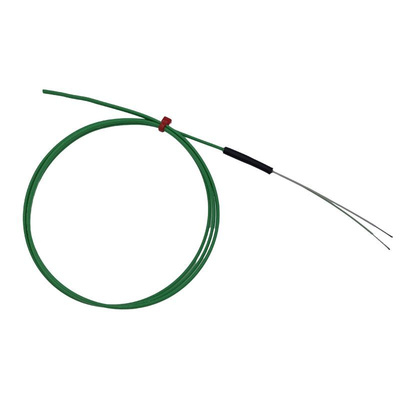

RS PRO Type K Thermocouple, -75°C → +260°C

RS PRO IEC Type K Hermetically Sealed Wire Thermocouple (1m)

A hermetically sealed IEC Type K thermocouple designed for use in corrosive of wet environments. Comprising of a flat easy to clean impermeable PFA insulated wire sealed to be airtight and protected against moisture, a sensor tip and terminating in bare tails for easy connection.
The Type K thermocouple is IP67 rated, electrically insulated and features exceptional resistance to oils, fluid, chemicals and gases with excellent heat and thermal resistance, and a wide temperature measurement range of -75 up to 260°C.
A hardwearing hermetically sealed thermocouple with a rapid response time with a Class I accuracy tolerance suitable for use in a wide range of applications and perfect for precision temperature measurement of liquids in harsh corrosive environments.

Features and Benefits

Type K thermocouple
Hermetically sealed
Electrically insulated tip (tested up to 1Kv)
PFA insulated
IP67 rated
Core/ strands 7/0.2mm (24AWG)
Class 1 tolerance
IEC colour coded
Cable length of 1m
Minimum temperature measurement -75°C
Maximum temperature measurement of +260°C
Bare tail termination
Pressure tested at 40 PSI
IEC colour coded

Standards and Approvals: IEC
