RS PRO Type J Thermocouple, -75°C → +260°C

2684459
Производитель: RS PRO
Цена за шт.
8123.70 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

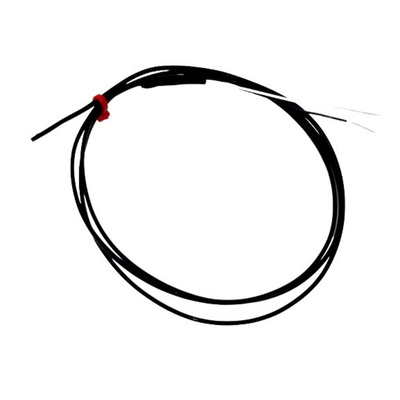

RS PRO IEC Type J Hermetically Sealed Wire Thermocouple (1m)

A hermetically sealed IEC Type J thermocouple designed for use in corrosive of wet environments. Comprising of a flat easy to clean impermeable PFA insulated wire sealed to be airtight and protected against moisture, a sensor tip and terminating in bare tails for easy connection.
The Type J thermocouple is IP67 rated, electrically insulated and features exceptional resistance to oils, fluid, chemicals and gases with excellent heat and thermal resistance, and a wide temperature measurement range of -75 up to 260°C.
A hardwearing hermetically sealed thermocouple with a rapid response time with a Class I accuracy tolerance suitable for use in a wide range of applications and perfect for precision temperature measurement of liquids in harsh corrosive environments.

Features and Benefits

Type J thermocouple
Hermetically sealed
Electrically insulated tip (tested up to 1Kv)
PFA insulated
IP67 rated
Core/ strands 7/0.2mm (24AWG)
Class 1 tolerance
IEC colour coded
Cable length of 1m
Minimum temperature measurement -75°C
Maximum temperature measurement of +260°C
Bare tail termination
Pressure tested at 40 PSI
IEC colour coded

Standards and Approvals: IEC

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Техническая спецификация
pdfRS PRO Datasheet
Встречающиеся стандарты:
IEC
Кабель - длина:
Максимальная температура зондирования:
+260°C
Минимальная температура зондирования:
-75°C
Серия:
Hermetically Sealed Thermocouple
Тип выводов:
Bare Wire Tail
Тип термопары:
J
