RS PRO Type K Thermocouple 6mm Diameter, -60°C → +350°C

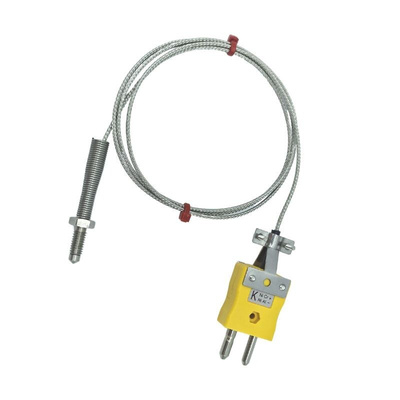

RS PRO ANSI Type K Nozzle Thermocouple with Threaded Bolt (M6 x 1mm thread)

A reliable and accurate Type K thermocouple featuring a nozzle sensor for quick and easy measurements inside pipes and other hollow structures for the precise temperature measurement of gas or fluids. Comprising of a thermocouple inside a Stainless Steel threaded bolt for direct attachment with the object being measured and Glassfibre insulated Stainless Steel braided cable terminating in a robust thermoplastic ANSI colour coded plug.
The Type K thermocouples Glassfibre insulated Stainless Steel braided cable protects against wearing and mechanical stresses, and features excellent heat and thermal resistance and the nozzle sensor enables temperature measurements of -60 up to 350°C.
A hardwearing, reliable and accurate Type K tube thermocouple with a grounded hot junction increasing measuring accuracy and stability. Ideal for steam, gas and fluid temperature measurements and suitable for harsh environments.

Features and Benefits

Type K thermocouple
Nozzle style thermocouple
M6 x 1mm threaded bolt
Glassfibre insulation
Core/ strands 7/0.2mm (24AWG)
Cable length of 2m
Minimum temperature measurement -60°C
Maximum temperature measurement of +350°C
Colour coded plug
ANSI colour coded

Standards and Approvals: ANSI MC96.1
