RS PRO Type K Thermocouple 40mm Length, 25mm Diameter, -50°C → +250°C

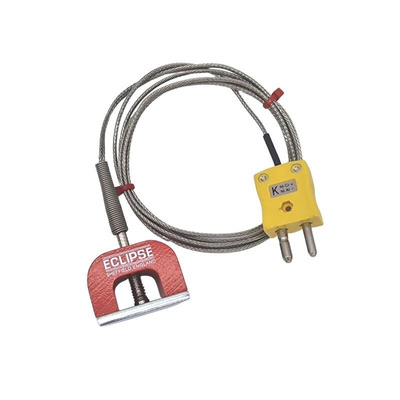

RS PRO ANSI Type K Horseshoe Magnet Thermocouple (9kg Pull)

A reliable and hardwearing Type K thermocouple featuring a horseshoe magnet for simple and easy localised temperature measurements on pipes, tanks and other ferrous containers. Comprising of 9kg pull magnet thermocouple with a PFA insulated Stainless Steel braided cable terminating in a robust colour coded type K plug.
Constructed from tough thermoplastic the Type K plug is ANSI colour coded and the PFA insulated Stainless Steel braided cable protects against wearing and mechanical stresses and features excellent heat and thermal resistance.
A hardwearing, reliable, and accurate Type K magnet thermocouple suitable for harsh industrial environments.

Features and Benefits

Type K thermocouple
9kg pull magnet
Magnet dimensions of 25 x 25 x 40mm
Terminated in Type K plug
PFA insulated Stainless Steel braided cable
Core/ strands 7/0.2mm
Cable length of 3m
Minimum temperature measurement -50°C
Maximum temperature measurement of +250°C
ANSI colour coded

Standards and Approvals: ANSI MC96.1

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
