RS PRO RTD Sensor, +260°C Max

2684601
Производитель: RS PRO
Цена за шт.
20845.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

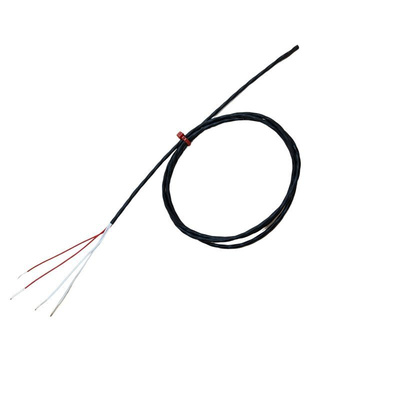

RS PRO Hermetically Sealed Wire Pt100 RTD Sensor (2m)

A hermetically sealed RTD sensor designed for use in corrosive of wet environments. Comprising of a flat easy to clean impermeable PFA insulated wire sealed to be airtight and protected against moisture and terminating 4 flexible wires with 75mm tails for easy connection.
The RTD is IP67 rated, electrically insulated and features exceptional resistance to oils, fluid, chemicals and gases with excellent heat and thermal resistance, and a wide temperature measurement range of -30 up to 260°C.
A hardwearing hermetically sealed RTD Sensor featuring a rapid response time with a Class A accuracy tolerance suitable for use in a wide range of applications and perfect for precision measurement of liquids in harsh corrosive environments.

Features and Benefits

RTD Sensor
Pt100
Hermetically sealed
Electrically insulated tip (tested up to 1Kv)
PFA insulated
IP67 rated
Core/ strands 7/0.2mm (24AWG)
75mm tails
Class A tolerance
Cable length of 2m
Minimum temperature measurement -30°C
Maximum temperature measurement of +260°C
Pressure tested at 40 PSI

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Техническая спецификация
pdfRS PRO Datasheet
Кабель - длина:
Максимальная температура зондирования:
+260°C
Минимальная температура зондирования:
-30°C
Серия:
Hermetically Sealed RTD
Тип выводов:
Bare Wire Tail
