RS PRO Cylindrical, NO, 160 Vac, IP67

RS PRO Magnetic Float Reed Switch (10W/0.5A)

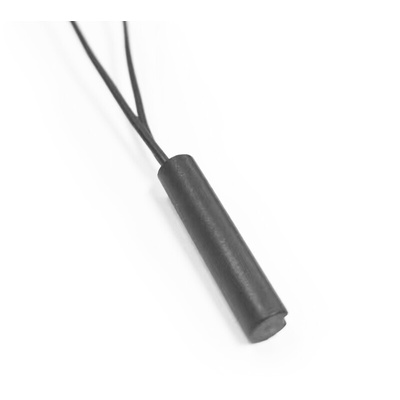

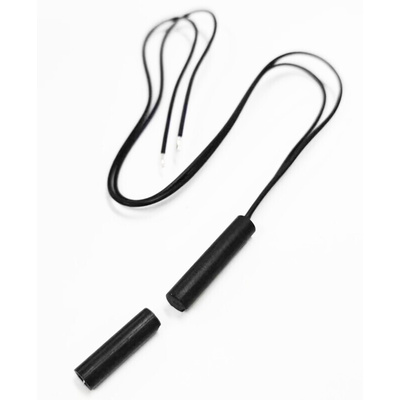

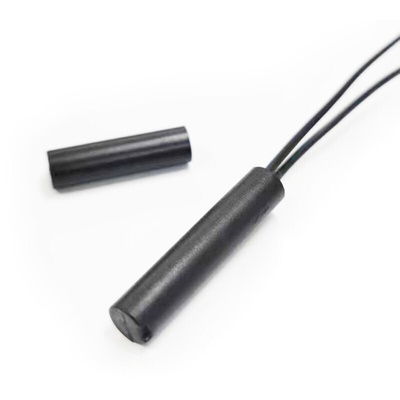

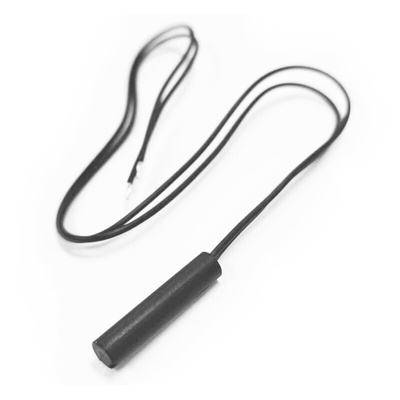

A float type magnetic Reed switch designed to complete an electrical circuit in the presence of a magnetic field providing a simple solution to position and limit sensing applications. Set with a NO (Normally Open) contact position the magnetic proximity Reed switch features a cylindrical float body encapsulated within an ABS shell with a 300mm UL1007 24AWG cable.
Reliable and versatile the magnetic reed switches impact resistant ABS body protects the switch from ingress and fluids, and the operating temperature of -30 to 85 °C combined with a humidity resistance of 95% RH makes it ideal for challenging environments.
A reliable and consistent Reed float switch ideal for controlling and monitoring fluid levels in a wide range of applications and suitable for use in harsh environments.

Features and Benefits

Reed switch
Magnetic proximity
Float type
NO contact configuration
Detection range of greater than 5mm
ABS casing
UL1007 24AWG Cable
300mm cable length
Temperature range of -30 to 85°C
Humidity resistance of 95%
Maximum contact rating of 10W
Maximum switching current of 0.5A
Dimensions of 28 x 5.8mm
