RS PRO Rectangular Proximity Switch, NO, 160Vac, IP67

RS PRO ABS Proximity Switch (10W/1A)

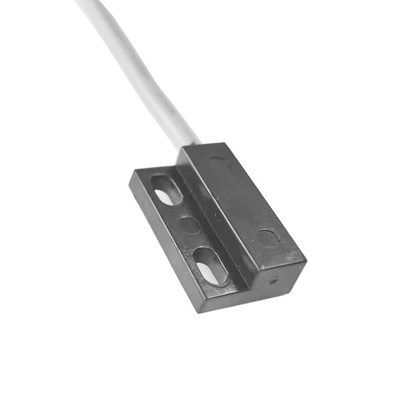

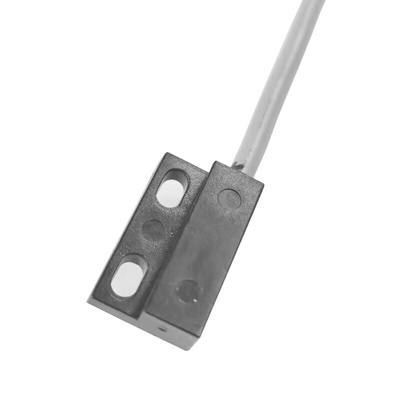

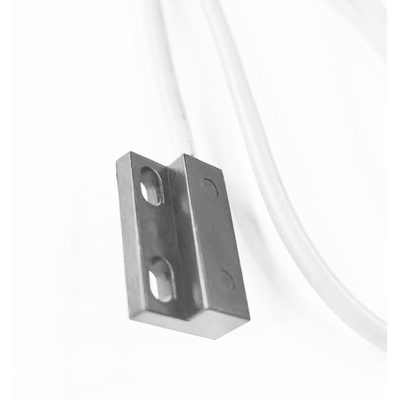

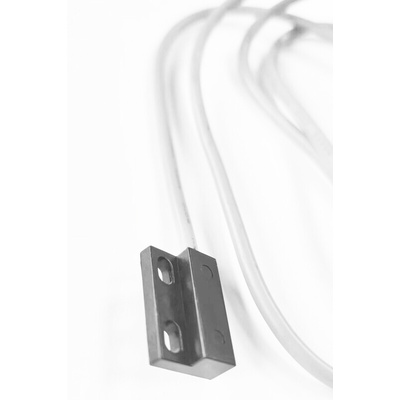

A rectangular Reed switch designed to complete an electrical circuit in the presence of a magnetic field providing a simple solution to position and limit sensing applications. Set with a NO (Normally Open) contact position the magnetic proximity switch features an ABS shell with a 933mm cable.
Reliable and versatile the magnetic switches impact resistant ABS body protects the switch from ingress and fluids, and the operating temperature of -30 to 80C combined with a humidity resistance of 95% RH makes it ideal for challenging environments.
Designed for direct mounting in an enclosure the proximity switch is reliable, consistent and ideal for controlling and monitoring fluid levels in a wide range of applications and suitable for use in harsh environments.

Features and Benefits

Reed switch
ABS body
Rectangular
NO contact configuration
Detection distance of greater than 5mm
933mm cable length
Temperature range of -30 to 80°C
Humidity resistance of 95%
Maximum contact rating of 10W
Maximum switching current of 1A
Maximum switching voltage of 10VA
Minimum breakdown voltage of 200Vdc
Dimensions of 23 x 14 x 6.25mm
