RS PRO IP67 SPST Cable Mount Reed Switch, 0.5A 100Vdc

RS PRO Brass Cylindrical Reed Switch (10W/0.5A)

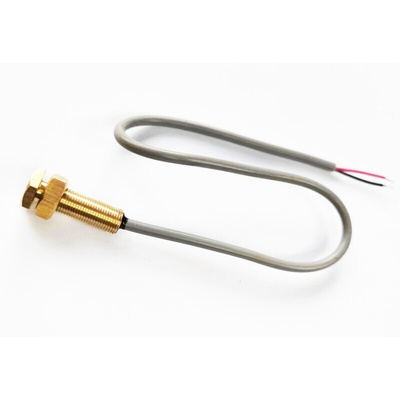

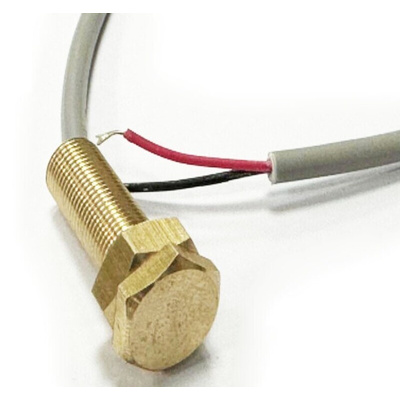

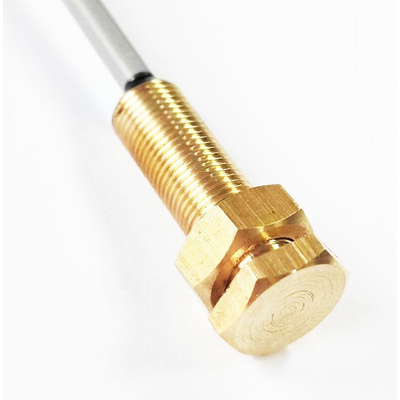

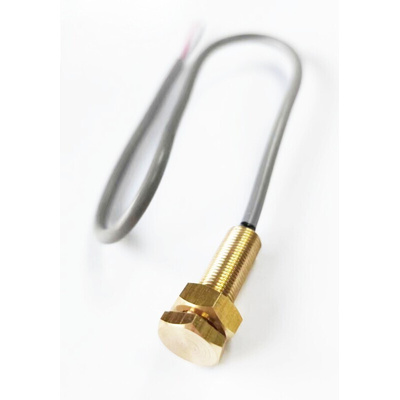

A cylindrical Reed switch designed to complete an electrical circuit in the presence of a magnetic field providing a simple solution to position and limit sensing applications, linear actuators and security and safety systems. The proximity Reed switch features a cylindrical body design with a SPST configuration and a 300mm UL2464 24AWG cable.
Reliable and versatile the reed features a hardwearing and corrosion resistance Brass body with an operating temperature of -30 to 80C combined with a humidity resistance of 95% RH making the Reed switch ideal for challenging environments.
A reliable and consistent Reed switch for wide range of applications and suitable for use in harsh environments.

Features and Benefits

Reed switch
Open/Closed output type
Brass body
Fitted magnet
Minimum switching distance of 10mm
UL2464 24AWG Cable
Brown/White/Yellow
300mm cable length
Thread size M8
Temperature range of -30 to 80°C
Humidity resistance of 95%
Maximum contact rating of 10W
Maximum switching current of 0.5A
Maximum Voltage 160Vac/220Vdc
Maximum switching voltage of 100Vdc
Minimum breakdown voltage of 200Vdc
Dimensions of 28 x 12mm

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
