RS PRO IP67 SPST Cable Mount Reed Switch, 0.5A 100Vdc

RS PRO Brass Cylindrical Reed Switch (10W/0.5A)

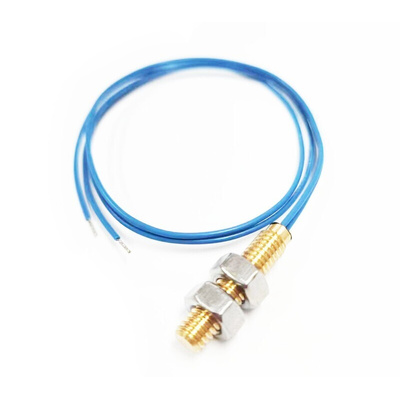

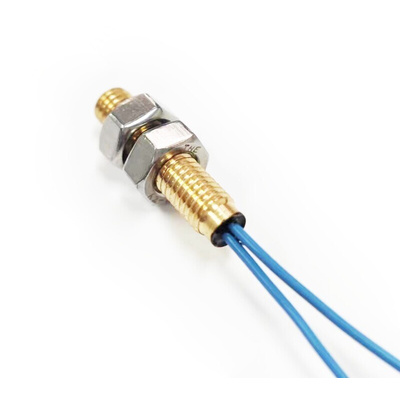

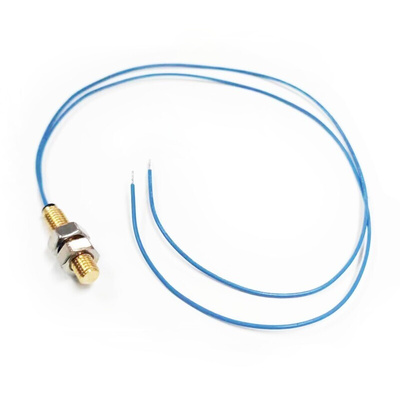

A cylindrical Reed switch designed to complete an electrical circuit in the presence of a magnetic field providing a simple solution to position and limit sensing applications, linear actuators and security and safety systems. The proximity Reed switch features a cylindrical body design with a SPST configuration and a 300mm Blue UL1007 24AWG cable.
Reliable and versatile the reed features a hardwearing and corrosion resistance Brass body with an operating temperature of -30 to 80C combined with a humidity resistance of 95% RH making the Reed switch ideal for challenging environments.
A reliable and consistent Reed switch for wide range of applications and suitable for use in harsh environments.

Features and Benefits

Reed switch
Open/Closed output type
Brass body
UL1007 24AWG Cable
Blue PVC cable
300mm cable length
M8 thread
Temperature range of -30 to 80°C
Humidity resistance of 95%
Dectection range of 5mm
Maximum contact rating of 10W
Maximum switching current of 0.5A
Maximum Voltage of 160Vac/ 220Vdc
Maximum switching voltage of 100Vdc
Minimum breakdown voltage of 200Vdc
Dimensions of 28 x 12mm
