RS PRO Rectangular Reed Switch, NO, 160Vac, IP67

RS PRO Rectangular Aluminium Reed Switch (10W/0.5A)

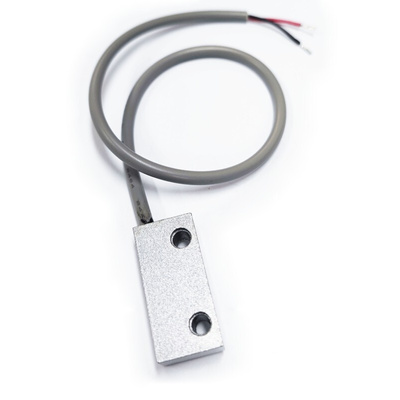

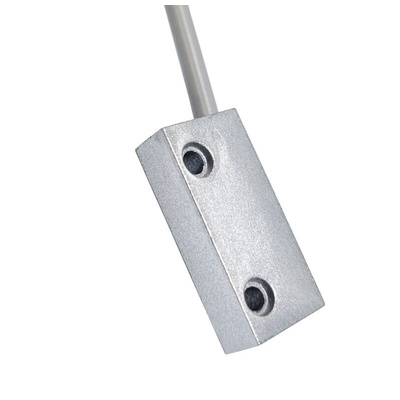

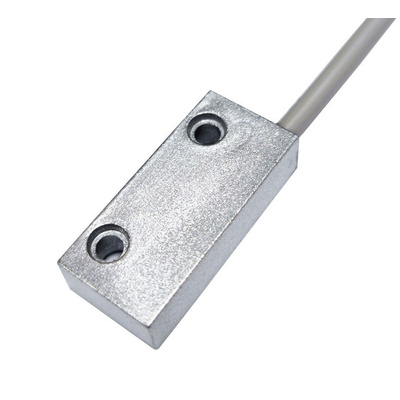

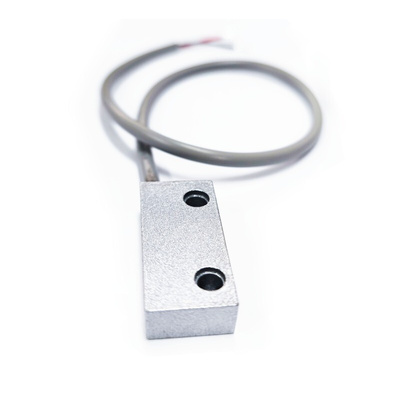

A float body Reed switch designed to complete an electrical circuit in the presence of a magnetic field providing a simple solution to position and limit sensing applications. Set with a NO (Normally Open) contact position the proximity Reed switch features a rectangular Aluminium body with a 300mm UL2464 24AWG cable.
Reliable and versatile the reed switches IP67 rated Aluminium body protects the switch from ingress and fluids, and the operating temperature of -30 to 80 °C combined with a humidity resistance of 95% RH makes it ideal for challenging environments.
A reliable and consistent Reed float switch ideal for controlling and monitoring fluid levels in a wide range of applications and suitable for use in harsh environments.

Features and Benefits

Reed switch
Magnetic proximity
Float body
Aluminium
Rectangular
NO contact configuration (A)
UL2464 24AWG Cable
300mm cable length
Temperature range of -30 to 80°C
Humidity resistance of 95%
Maximum contact rating of 10W
Maximum switching current of 0.5A
Maximum switching voltage of 100Vdc
Minimum breakdown voltage of 250Vdc
Dimensions of 29 x 19 x 7mm
