RS PRO Cylindrical Reed Switch, NO, 160Vac, IP67

RS PRO Cylindrical Magnetic Reed Switch (10W/0.5A)

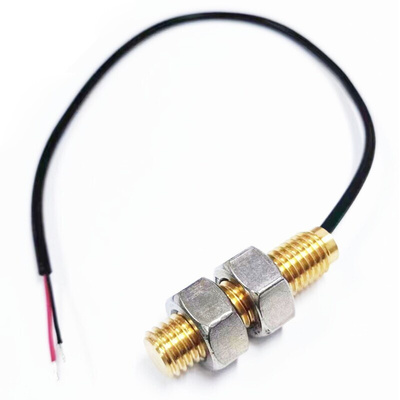

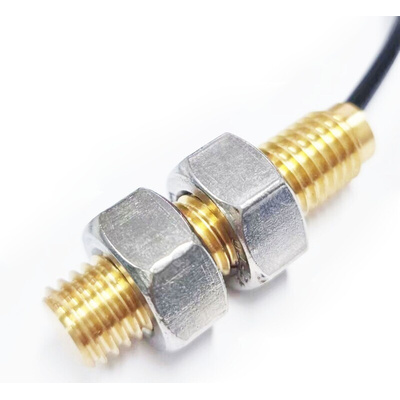

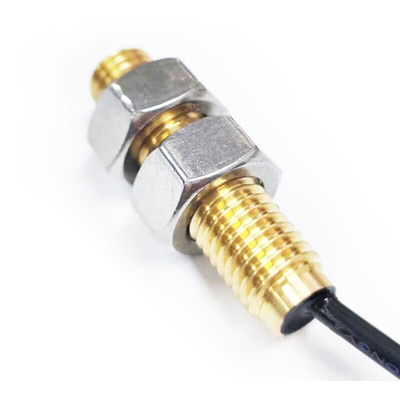

A cylindrical magnetic Reed switch designed to complete an electrical circuit in the presence of a magnetic field providing a simple solution to position and limit sensing applications. Featuring a open/closed output type the magnetic proximity Reed switch features a cylindrical Copper body with an 300mm UL2464 24AWG cable.
Reliable and versatile the magnetic reed switches IP67 rating protects the switch from ingress and fluids, and the operating temperature of -30 to 80 °C combined with a humidity resistance of 95% RH makes it ideal for challenging environments.
A reliable and consistent Reed switch ideal for controlling and monitoring fluid levels in a wide range of applications and suitable for use in harsh environments.

Features and Benefits

Reed switch
Magnetic proximity
Open/Closed output type
Contact form A
Copper (+SUS304)
M12 thread
UL2464 24AWG Cable
300mm cable length
Temperature range of -30 to 80°C
Humidity resistance of 95%
Maximum contact rating of 10W
Maximum switching current of 0.5A
Maximum switching voltage of 100Vdc
Minimum breakdown voltage of 200Vdc
Length of 50mm
