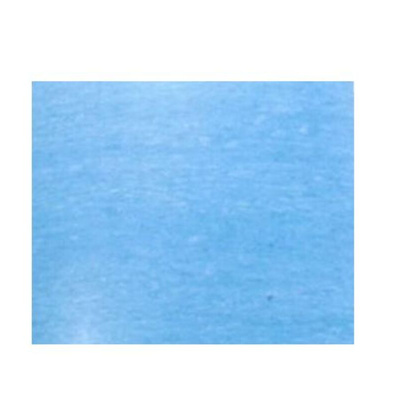

RS PRO 750 x 500mm Blue Compressed Fiber Gasket Sheet

RS PRO General Purpose Compressed Synthetic Fibre Gasket Sheet (750 x 500 x 1.5mm)

A general purpose compressed synthetic fibre gasket sheet supplied in size 750 x 500 x 1.5mm perfect for the creation of replacement or custom sized gaskets providing a reliable long lasting seal.
The compressed sheet is ideally suited for use in gas and potable water supplies and will create a tight and consistent seal preventing the leakage of gas or fluids from the system.
The compressed fibre gasket sheet combines very good thermal, chemical and mechanical properties, excellent seal ability performance and with a continuous maximum temperature of 250°C and 200°C with steam. A high quality general purpose synthetic gasket sheet suited to a wide range of industries and systems.

Applications

Automotive
Compressors and Pumps
Food Industry
Gas Supply
Heating Systems
Petrochemical Industry
Potable Water Supply
Refrigeration and Cooling

Features and Benefits

General purpose synthetic fibre gasket sheeting
Dimensions of 750 x 500 x 1.5mm
Very good thermal, chemical and mechanical resistance
Excellent seal performance
Density 1.7g/cm
Compression Set 11%
Tensile Strength 14Mpa
Maximum Pressure 100bar/ 1450psi
Recovery 60%
Maximum Continuous Temperature 250°C (Steam 200°C)
Maximum Temperature 350°C
Creep relaxation at room temperature 4.7%
Creep relaxation at 200°C of 0.8%

Standards and Approvals: ABS, DNV GL, EC 1935/2004, TA Luft (VDI 2440), AGA AS 4623, DVGW DIN 30653, ELL (HOT), T2W W270, BAM (oxygen), DVGW DIN 3535-6, SVGW DIN 3535-6, WRAS
