RS PRO 750 x 500mm Black Compressed Fiber Gasket Sheet

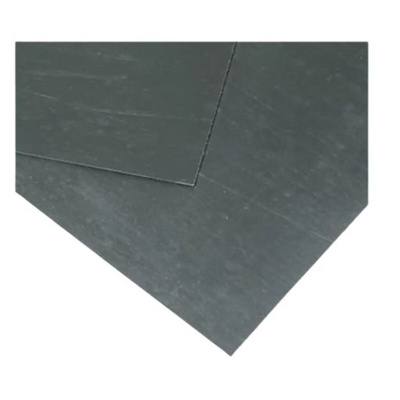

RS PRO Compressed Carbon Fibre Gasket Sheet (750 x 500 x 0.5mm)

A compressed Carbon Fibre gasket sheet supplied in size 750 x 500 x 0.5mm perfect for the creation of replacement or custom sized gaskets providing a reliable long lasting seal.
Suitable for high temperature and resistant to strong Alkaline the compressed Carbon Fibre gasket sheet combines excellent thermal and chemical with very good mechanical properties and moderate seal ability performance.
Perfect for use in the paper, cellulose and petrochemical industries with a continuous maximum temperature of 300°C and 250°C with steam and overall maximum temperature of 400°C. The compressed fibre gasket sheet is suited to a wide range of industries and systems and excels in high temperature environments.

Applications

Chemical Industry
Gas Supply
Paper and Cellulose Industries
Petrochemical Industry
Potable Water Supply
Steam Supply

Features and Benefits

Compressed Carbon Fibre gasket sheeting
Dimensions of 750 x 500 x 0.5mm
Very good mechanical resistance
Excellent chemical and thermal resistance
Moderate seal performance
Density 1.7g/cm
Compression Set 11%
Tensile Strength 12Mpa
Maximum Pressure 120bar/ 1740psi
Recovery 60%
Maximum Continuous Temperature 300°C (Steam 280°C)
Maximum Temperature 400°C
Creep relaxation at room temperature 3.6%
Creep relaxation at 200°C of 1%

Standards and Approvals: BAM (oxygen), DVGW DIN 30653 (5 bars), BS 7531 Grade X, DVGW DIN 3535-6, DNV GL
