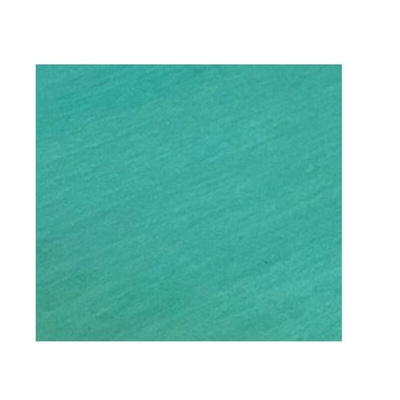

RS PRO 750 x 500mm Green Compressed Fiber Gasket Sheet

RS PRO Compressed Synthetic Fibre Gasket Sheet (750 x 500 x 2mm)

A compressed fibre gasket sheet supplied in size 750 x 500 x 2mm perfect for the creation of replacment or custom sized gaskets creating a reliable long lasting seal and providing excellent bolt torque retention.
Suitable for high temperature the compressed fibre gasket sheet combines excellent thermal and chemical properties and very good seal ability performance.
Perfect for use gas and steam supplies, heating systems, pumps and compressors due to its excellent bolt torque retention greatly reducing the relaxation of the gasket and maintaining a tight compression preventing the loss of fluids or gas.
With a continuous maximum temperature of 350°C and 250°C with steam and overall maximum temperature of 440°C the compressed fibre gasket sheet is suited to a wide range of industries and systems and excels in high temperature applications.

Applications

Compressors and Pumps
Food Industry
Gas Supply
Heating systems
Petrochemical Industry
Potable Water Supply
Refrigeration and Cooling
Steam Supply

Features and Benefits

Compressed fibre gasket sheeting
Dimensions of 750 x 500 x 2mm
Excellent mechanical, chemical and thermal resistance
Very good seal performance
Density 1.8g/cm
Compression Set 11%
Tensile Strength 11Mpa
Maximum Pressure 120bar/ 1740psi
Recovery 55%
Maximum Continuous Temperature 350°C (Steam 250°C)
Maximum Temperature 440°C
Creep relaxation at room temperature 3.3%
Creep relaxation at 200°C of 1.2%

Standards and Approvals: ABS, DNV GL, EC 1935/2004, TA Luft (VDI 2440), BAM (oxygen), DVGW DIN 30653, ELL (cold), WRAS, BS 7531 Grade X, DVGW DIN 3535-6, FIRE SAFE ISO 10497
