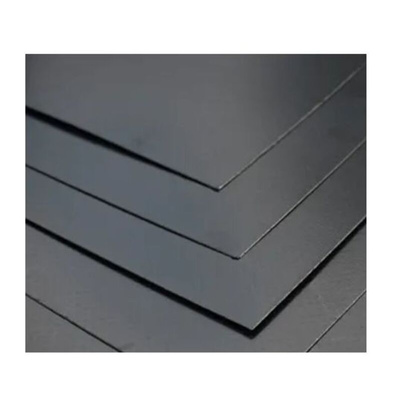

RS PRO 500 x 500mm Black Graphite Gasket Sheet

RS PRO Expanded Graphite Gasket Sheet with Stainless Steel Foil Insert (500 x 500 x 1mm)

An expanded Graphite gasket sheet enhanced with a Stainless Steel foil insert supplied in size 500 x 500 x 1mm. Perfect for the creation of replacement or custom sized gaskets creating a reliable long lasting seal and providing a high level of creep resistance.
The expanded Graphite gasket sheet delivers outstanding performance at high temperatures. Combining superior thermal, good mechanical and excellent chemical and sealing properties along with the Stainless Steel foil adding strength to the gasket sheet, increasing resistance to creepage and surface load.
With a maximum temperature of 700°C and a high level of compressibility the expanded Graphite gasket sheet is suited to a wide range of industries and systems and due to the high levels of creep resistance, excellent thermal and chemical properties it excels in demanding high temperature environments.

Applications

Chemical Industry
Petrochemical Industry
Compressors and Pumps
Gas Supply
Heating Systems
Potable Water Supply
Refrigeration and Cooling
Steam Supply
Water Supply

Features and Benefits

Expanded Graphite gasket sheeting
Dimensions of 500 x 500 x 1mm
Superior thermal resistance
Excellent chemical resistance
Excellent seal performance
Very good mechanical resistance
Density 1.3g/cm
Compression Set 42%
Maximum Pressure 10bar/ 1450psi
Recovery 15%
Maximum Temperature 700°C
Creep relaxation at room temperature 4.3%
Creep relaxation at 200°C of 3.6%

Standards and Approvals: BAM (oxygen)

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
