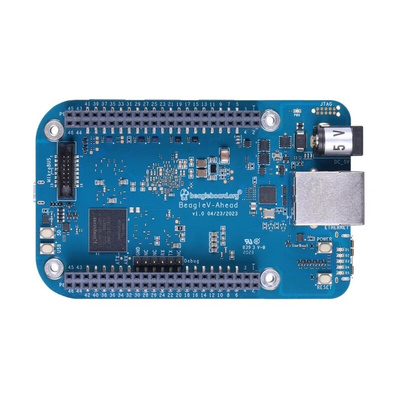

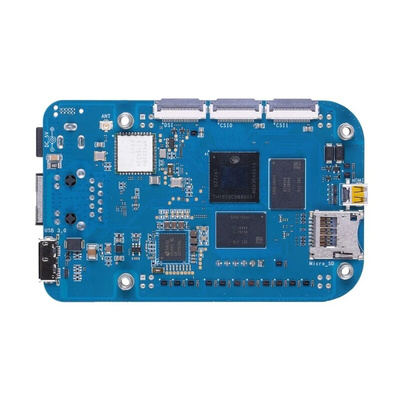

102991698, Beagleboard.org BeagleV® Ahead

Introducing the BeagleV® Ahead, an impressive open-source RISC-V Single Board Computer (SBC) from BeagleBoard.org® that adopts the familar BeagleBone Black form factor. Built with the same P8 & P9 cape header pins as the BeagleBone Black, it allows you to seamlessly integrate your preferred BeagleBone cape for expanded functionality. Equipped with a powerful quad-core RISC-V processor, the BeagleV® Ahead is a compact and affordable pocket-sized computer, specifically tailored to cater to the needs of developers, hobbyists, and researchers keen on exploring and experimenting with RISC-V technology.

Key benefits of the BeagleV® Ahead

Based on TH1520, a cutting-edge quad-core 64-bit RISC-V SoC developed by T-Head, the BeagleV® Ahead represents a significant advancement within the expanding RISC-V ecosystem, offering unparalleled accessibility, performance, and flexibility.
Its compact size doesn’t mean it’s lacking features. With a variety of I/O interfaces, this SBC is ideal for diverse applications such as IoT devices, robotics, AI, and embedded systems. If you are eager to delve into the world of RISC-V technology, the BeagleV® Ahead presents an exceptional choice. Its power, versatility, and capacity for customization allow you to experiment with utmost freedom. Here are some key features and specifications of the BeagleV® Ahead SBC:

RISC-V CPU: Alibaba T-Head TH1520 quad-core RISC-V Xuantie C910 (RV64GCV) processor clocked at 1.85GHz, Xuantie C906 audio DSP, low power Xuantie E902 core, 50 GFLOPS Imagination 3D GPU, and 4 TOPS NPU
Storage: 4GB LPDDR4 RAM, 16GB eMMC storage, and a microSD expansion slot.
Networking: 2.4GHz/5GHz WiFi, Bluetooth 5.2, and Gigabit Ethernet.
Connectivity: microHDMI, USB3 (5Gbps) microAB (host/device), and Serial debug.
Add-on board expansion: mikroBUS shuttle (UART/I2C/SPI/ADC/PWM/GPIO), 2xCSI, DSI, and BeagleBone compatible 92-pin cape header pins.
Open-Source Design: The BeagleV® Ahead adheres to the principles of open-source hardware, making it easy modify the board's design and firmware, fostering collaboration and innovation within the RISC-V community, showcasing its remarkable potential.
Linux-Compatible: BeagleV® Ahead comes pre-installed with Yocto, and there are functional prototypes available for Ubuntu and Fedora. This ensures a familiar and robust development environment, enabling a seamless transition for Linux enthusiasts.

Experience the BeagleV® Ahead—an extraordinary SBC that combines power, versatility, and the advantages of open-source design. Unlock your potential as you navigate the RISC-V landscape, supported by a compact yet powerful computing solution that encourages collaboration and provides the tools necessary for transformative innovation.

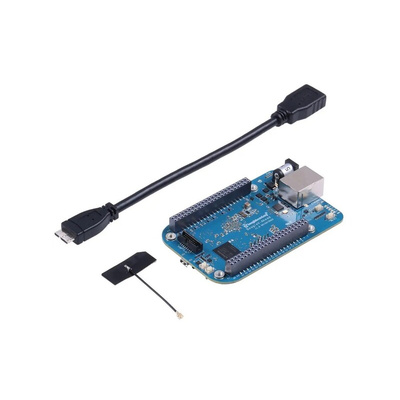

What’s included?

BeagleV® Ahead board
One (1) 2.4GHz/5GHz antenna to use WiFi
microUSB OTG cable
Quick-start card

Technical specifications

Processor: T-Head TH1520 (quad-core Xuantie C910 processor)
PMIC: DA9063
Memory: 4GB LPDDR4
Storage: 16GB eMMC
WiFi/Bluetooth: PHY: AP6203BM, Antennas: 2.4GHz & 5GHz
Ethernet: PHY: Realtek RTL8211F-VD-CG Gigabit Ethernet phy, Connector: integrated magnetics RJ-45
microUSB 3.0: Connectivity: USB OTG, Flash support, Power: Input: 5V @ , Output: 5V @
HDMI: Transmitter: TH1520 Video out system, Connector: Mini HDMI
Other connectors: microSD, mikroBUS connector (I2C/UART/SPI/MCAN/MCASP/PWM/GPIO), CSI connector compatible with BeagleBone AI-64, Raspberry Pi Zero / CM4 (22-pin), DSI connector
