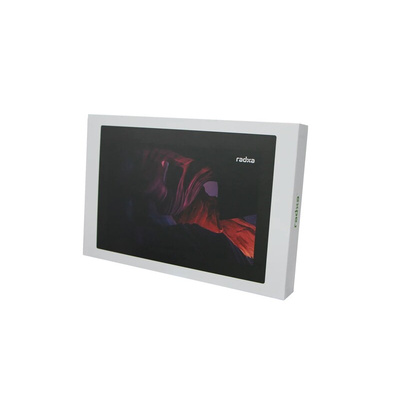

AD003, Okdo ROCK 10.1 Inch FHD Touchscreen Display for use with ROCK 5A/5B/4C+ Single Board Computers

This 10-inch FHD Touchscreen Display from OKdo, is tailor-made for use with ROCK Single Board Computers. It boasts the advantages of a vivid colour-active-matrix thin film transistor (TFT) LCD module, complete with an integrated touch panel. This display is ideal for the development of interactive applications, including but not limited to tablets, industrial Human-Machine Interfaces (HMIs), informative dashboards, and a wide array of other versatile projects.

Key features of the OKdo ROCK 10 Inch FHD Touchscreen Display:

Panel Size: 10.1 inch
Compatible with NTSC & PAL system
Image Reversion: UP/DOWN and LEFT/RIGHT
ROHS design
Outline Dimension: 155(H) x 246.16(V) x 5.95(D) mm
Display area: 135.36(H) x 216.58 (V) mm
Number of Pixel: 1200RGB (H) x 1920 (V) pixels
Pixel pitch: 0.0564 (H) x 0.1692(V)s mm
Pixel arrangement: RGB Vertical stripe
Display mode: Normally Black
Colour Filter Array: RGB vertical stripes
Backlight: White LED
Electrical Interface: MIPI

Compatible with the following ROCK single board computers:

ROCK 4 Model C+
ROCK 5 Model A
ROCK 5 Model B

Datasheet AD003
