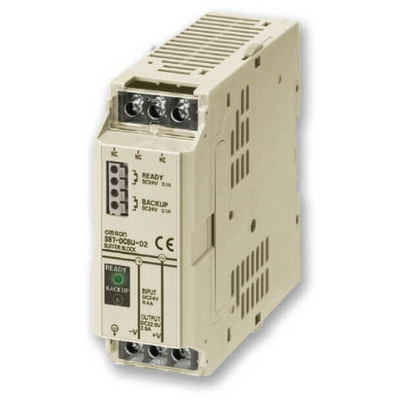

S8T-DCBU-02, Omron Buffer Module, for use with S8TS Power Supply, S8T Series

25W to 60W S8TS Series

Range Features:

Modular units which can be connected together (4 unit’s max. on 24Vdc and 12Vdc, 2 units on 5Vdc)
Up to 10A max. output (+1 unit for redundancy -12V and 24V units only)
On board (bus style) connections for AC/DC (same DC voltages only)
DC outputs can be combined or used separately
DC voltage low indication and alarm on each unit
Overload/Over-voltage protection
EMI to EN50081-1, FCC-B
Under-voltage detection and LED indicator

Standards

EN60950, UL1950, CSA22.2-14-950.

Approvals

UL Recognised; UL Recognised for Canada

The Omron buffer block prevents equipment stoppage, data loss, and other problems resulting from momentary power failures. It provides a backup time of 500 ms at an output current of 2.5 A.

Can be wired to the 24-V output from the S8VS Supplies

Datasheet - S8T-DCBU-02
