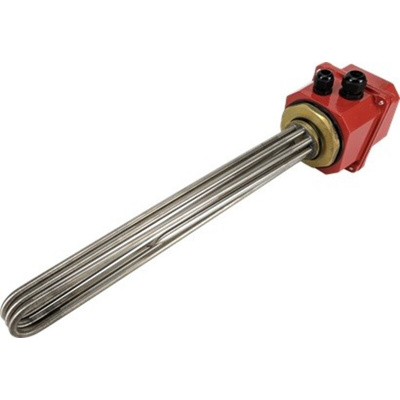

RS PRO Heating Element, 400mm, 3.8 kW, 230 → 415 V

RS PRO 400mm Incoloy Immersion Heater 2.25in (3.8kW @ 240/ 415V)

A hardwearing water heater element with for use with stored water heaters with single and 3 phase systems. Featuring twin safety thermostat, an immersion depth of 400mm and a controlled temperature range of 20 to 80°C the stored water immersion heater enables consistent heat transfer across containers from barrels to tanks enabling a truly uniform heat.
Fitted with a 2.25in BSP threaded connection (G2 1/4) and 2 cable glands the immersion heater is easy to connect, and the twin thermostats offer high limit controls for a safe and reliable operation.
Manufactured with and Nickel Chromium Incoloy sheath for high levels or strength and its excellent corrosion resistance, Class I insulation and featuring an IP65 rating from protection from water and dirt the Incoloy water heating element is tough, reliable and excels in harsh industrial environments.

Features and Benefits

400mm Single and three phase Immersion Heater
2 1/4in BSP thread (G2 1/4)
Power of 3.8kW @ 240/415V
Supply voltage Single phase 230V
Supply voltage three phase 415V
Watts Density of 7.56 W/cm
Incoloy 800 sheath
Twin safety thermostats
IP65 Rated Head
Controlled temperature range of 20 to 80°C
Safety limit temperature of 45 to 95°C
Class I insulation
Element plate size of 87mm A/F

Note: Not Suitable for open air Water Heaters, Immersion Heaters must be fully submerged in water at all times when powered on

Standards and Approvals: CE/UKCA, BS EN 60335-1, BS EN 60335-2-73 & BS EN 60730-1 EN 60730-2-9

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
