1013-836, Megger MCT105 Cable Tracer Kit, Cable Detection Depth 2.5m CAT III 300V, Maximum Safe Working Voltage 400V

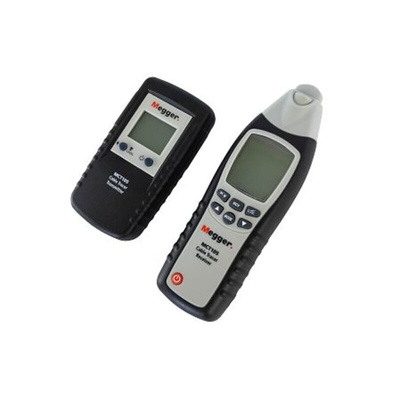

Megger Cable Tracer Kit, Built-In Torch, LCD - MCT105 Series - 1013-836

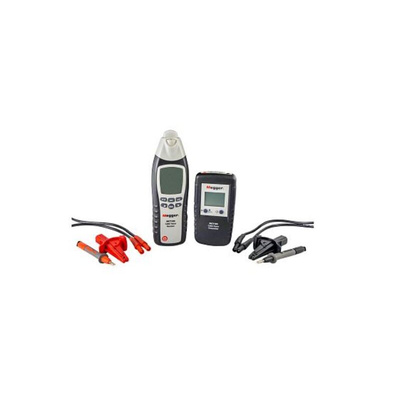

Track down the performance of a wire in your setup using this cable tracer kit from Megger. When you connect the kit's transmitter to a cable, it sends a signal that's picked up by the included receiver. This kit comes with test leads and crocodile clips, so you've got all you need for testing on the go. You can use this handy set to find your wires and conductors, search for electrical faults and find damage in your piping systems.

Features & Benefits

• Non-contact function eliminates the need to touch potentially dangerous live wiring
• Audible output for simple result notification
• Automatic and manual sensitivity adjustment offers flexibility during configuration
• Cable detection depth of 2.5m for an increased reach

Applications

• Electrical engineering
• HVAC systems
• Commercial buildings
• Marine industry

How can I monitor the test result?

This kit features an LCD that shows the feedback signal, so you can closely monitor the results.

What's the voltage detection capacity of this kit?

This kit can detect voltage levels up to 400V AC/DC for safe use in your low to medium-power electrical systems.
