RS PRO Rod Limit Switch, 2NC, IP66, Glass Reinforced Plastic (GRP) Housing, 250V ac ac Max, 3A Max

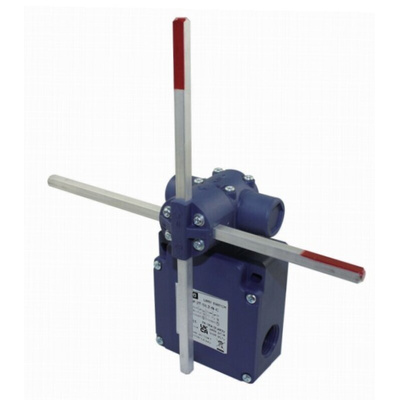

RS PRO Plastic, Cross Roller Rotary Rod Crane Limit Switch, Crossed Metal Rods, Two Speed, 2NC, M20 x 1.5 Conduit

From RS PRO this is the crossed rod crane plastic limit switch range designed and engineered to provide excellent protection as a safe and reliable limit switch for mechanical handling and hoisting. As the limit switch is made from glass fibre reinforced plastic it is hard wearing, has IP66 rated protection making the limit switch suitable for dusty environments plus protects from high pressure water jets.

Adding to the RS PRO rotary lever limit switch features it has two speed, NC contacts with positive opening operation, offers vibration, shock, and electric shock protection plus M20 conduit entry. The limit switch provides a service life of 2,000,000 mechanical conforming to international standards.

Features & Benefits

• Rotary Lever, Cross Roller limit switch


• Rod Crane Switch


• Crossed metal rods


• Glass fibre reinforced plastic body material


• Two speed


• Earth grounding surface same level as switching


• 3-Conduit opening


• Rated AC-15 – A600 Ue = 240 V, Ie = 3 A, DC-13 – Q300 Ue = 250 V, Ie = 0.27 A to IEC 947-5-1


• Positive opening of NC contacts


• Screw and captive cable clamp terminals


• M20 Cable entry


• Operating temperature range -25°C to +70°C


• Operating speed 0.05 mm, 2 m per sec


• Mechanical service life 2 million operations


• Vibration resistant to IEC 68-2-6


• Shock resistant to IEC 68-2-27


• Electric shock protection Class I to IEC 536 and NF C 20-030


• Short circuit protection 10 A Cartridge fuse type gG(gl)


• IP66 Rated, CE, IEC 60947-5-1, EN 60947-5-1, UL 508, UL

Applications Type

• Hoisting


• Mechanical handling

What is a Limit Switch?

A Limit Switch is especially important within industrial automation and control systems providing essential information and safety measures. Designed to detect the presence or absence of an object or to monitor the position of a moving part within an industrial process, machine, or equipment. A Limit Switch ensures that a component will stop, start, or change direction when required.

Benefits and Types of Limit Switches

There are many benefits in using limit switches within mechanical and industrial environments as they provide precise control, safety, and feedback.

• Position sensing limit switches accurately sense the position of a mechanical component


• Safety limit switches, important within industrial processes, preventing accidents and damage when something unsafe it detected by signalling a system to stop


• Automation limit switches are vital within automation and control as the control machinery, equipment and processes providing important feedback to a control system


• Mechanical actuation limit switches operate by physical contact with a moving part or object triggering the switch to change its state


• The switches have electrical contacts that change their position when actuated, normally open (NO), normally closed (NC) or both NO+NC


• Limit switches are a hard-wearing reliable component specially designed to stand up to mechanical wear, the environment, and extreme industrial conditions


• Limit switches are available in various actuator types suitable for different applications, no matter the job there is a limit switch available for your requirements


• Flexible and easy to install and integrate into existing systems, easily mounted reducing any equipment downtime


• Limit switches provide you with feedback allowing you to identify and deal with any problems within a system

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
