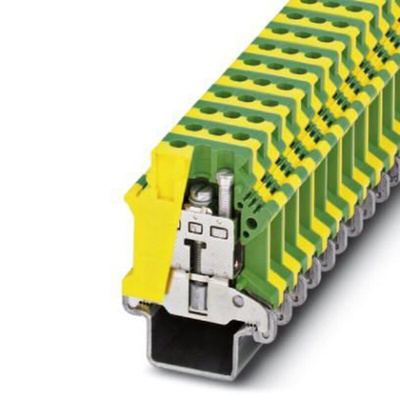

0443036, Phoenix Contact 1-Way DIN Rail Earth Modular Terminal Block, 2.5 → 25mm², 12 → 4 AWG Wire, ATEX, IECEx

Phoenix Contact, USLKG Series of Earth Block

The Phoenix Contact USLKG series of Earth block offers you reliable grounding for your earthing wires, increase protection for personnel and equipment from interference such as EMI. The USLKG series offers "Plug&Play" style DIN rail mounting, allowing you to easily interchange/modify the set up of your earth blocks. The USLKG series performs well in different environments and has a good operating temperature range.

Features and Benefits

• USLKG DIN Rail mountable

• Screw Connection, feature 2 connections

• Industry-wide green/yellow colouring for easy identification

• Available in various widths ranging from 5.2 - 12.2mm

• PA Insulating material

• Overvoltage category 3 protection

• ATEX Rated

Typical Applications

• Control centers

• Distribution boards

The Phoenix Contact Ground modular terminal block align with a feed through terminal block with the same shape is rated at 16 sqmm cross section. It can be mounted on DIN rail NS 35/15-2,3 with PE foot for mounting on terminal blocks and fits conductors of cross section 2.5 sqmm to 25 sqmm.

Green yellow color
Rated surge voltage 8 kV

USLK Series

Datasheet - 0443036
