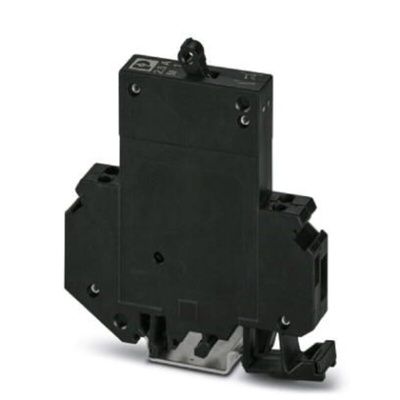

0914468, Phoenix Contact Circuit Breaker for use with DIN Rail

Phoenix Contact Thermomagnetic Circuit Breaker - M1

The DIN rail mounting, single pole, TMC 1 M1 range of thermomagnetic circuit breakers from Phoenix Contact have SFB tripping characteristics that give a maximum overcurrent protection over long cable paths.

Features and Benefits

• DIN rail mounting
• Trip faster than thermal device circuit breakers
• Only 12.5 mm wide
• Screw connection
• Push in or screw connection available
• Integrated remote signalling
• Universal foot for mounting on NS 32 or NS 35

Typical Applications

TMC M1 thermomagnetic circuit breakers are mostly used in process control, information and communication technology because of the different tripping characteristics.
The circuit breakers are a great solution for protecting valves, motors, logic controllers and frequency inverters.

The Phoenix Contact thermomagnetic device circuit breaker has 1 POS is rated for 250 V AC / 65 V DC and 2.5 A. The dielectric strength 3000 V AC and short circuit switching capacity 5000 A (UL 1077 277 V AC) / 2000 A (UL 1077 65 V DC). mounting possible on 35 mm DIN rail.

Rated surge voltage 2.5 kV
Black color
