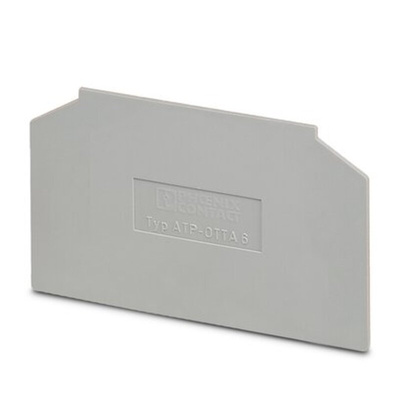

0790475, Phoenix Contact ATP-OTTA 6 Series Partition Plate for Use with DIN Rail Terminal Blocks

Bolt Connect Terminals

These terminals will accept M4 (6mm² csa type) or M6 (25mm² csa type) crimp terminal rings

Provision of a quick, secure connection is made possible by the hinged cover wings which hold the nut. When the wings are folded up, the bolt is ready to accept the ring terminal. Once on, the wings can be closed and the nuts actuated using a screwdriver.
The folding wings cover the live metal parts, including the insulated ring terminal for shock prevention. They can also be marked for easy identification using the marker strip, stock no. 290-1191.
The screws are secured against loosening from vibration by concealed captive spring loaded spacers.
The universal foot allows mounting on both ’top-hat’ and ’G’ profile rail.

Note

The marker strip contains 100 blank markers (1 unit comes with 10 strips, each strip contains 10 blank markers totalling 100 blank markers). The height detailed for the terminals relates to when the terminal is fitted to 'G' section DIN rail (For 'Top Hat' rail the heights are 52mm and 64.5mm respectively)

The Phoenix Contact partition plate is used to segregate different groups of Terminal Blocks and provide the required creep age and clearance values in an assembly.

Environmental friendly
No hazardous substances above threshold values

Datasheet - 0790475
