1914823, Phoenix Contact HCC 4-CLIP Series Safety Latch for Use with Engagement Catches

HCC Screw Connection Terminal Blocks

Features and benefits:

• High current-carrying capacity for the requirements of connectors which can be freely fitted in the construction of controllers and switchgear
• Screw connection for stranded conductors up to 4 mm², optional socket also for 0.5 - 2.5 mm² crimp connection
• Touch-proof even when unplugged
• Strain relief for plug and socket components
• 2 catches automatically ensure against unintentional loosening when plugged in
• Coding is possible without loss of polarity by inserting coding profiles into the plug and socket
• DIN Rail mountable on NS 32 and NS 35 using the foot element
• RoHS compliant

Accesories:

• 698-8063, plug, 10-way, screw connection, grey
• 698-8066, socket, 10-way, screw connection, grey
• 648-9982, coding profile, prevents similar connectors from being mixed up
• 698-8060, foot element, M4 x 10 screw for connection with the socket part, for assembly on NS 32 and NS 35 DIN Rail

Standards

IEC 61984, EN 60079-7.

Approvals

UL, CUL, CSA.

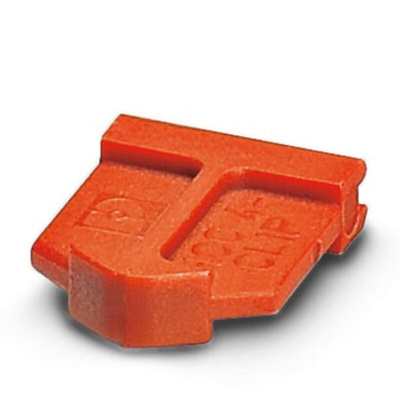

The Phoenix Contact safety latch is a locking clip for engagement catches and prevent the accidental disengagement of the clip arms.

Environmental friendly
No hazardous substances above threshold values

Plastic Two Part

Terminal blocks with a plug/socket arrangement which allow the block to be separated into two halves, isolating the plug strip without the need to remove each connection individually.
