FMP008P104 / 1731120079, FCT from Molex, 173112 Series, Male Solder D-Sub Connector Power Contact, Gold over Nickel Coaxial

Power/Coaxial Contacts

A range of Contacts designed for use in mixed layout Connector shells including Power, Coaxial and High Voltage types.
PCB holes for coax plug and socket: 4 holes 1.3mm dia. on 5.08mm ctrs, plus centre hole 1.3mm dia.
PCB mounting inserts are not suitable for use with right angle PCB connectors.
PCB holes for 20A and 40A PCB contacts are 2.85mm and 3.75mm respectively.

Snap-fit contacts removed with tool, stock no. 485-221
'M' DIN41612 connectors may also be used with mixed layout D shells
50 Ohm Coaxial contacts (straight) accept RG178B/U & RG174A/U cables. Use crimp tool (stock no. 470-099) for the braid and solder for the centre contact. Contacts removed with tool, stock no. 485-221

Note

Gender details relate to centre conductor

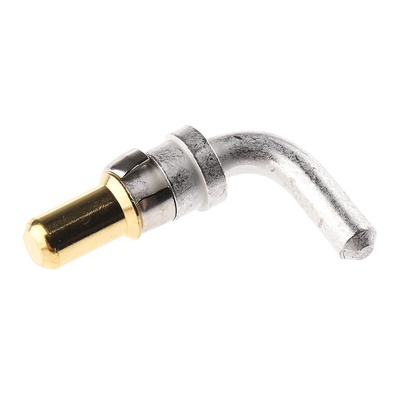

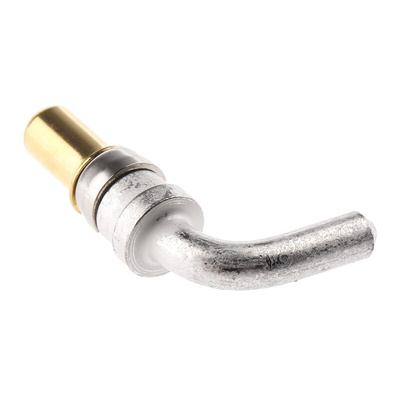

FCT from Molex D-Sub Connector Power Contact, 20A Current Rating, Coaxial Contact - FMP Series - FMP008P104 / 1731120079

Ensure your coaxial connections carry signals and power reliably with this FCT from Molex power contact. It has a 20A current rating to support high-power connections. The male pin is shaped at a right angle, so you can build systems that make a 90-degree connection. Use this contact to carry out network repairs or install it in space-saving D-sub connectors that combine coaxial, data and power functions.

• Contact made of conductive copper-alloy for a reliable connection
• Gold-over-nickel plating to improve durability and resistance to corrosion

Applications

• Computer networking
• Industrial automation
• Machine building
• Printed circuit boards

What termination method does this power contact need?

This contact needs to be soldered to achieve a secure join.

What size are the termination and mating areas?

This contact has a mating area of 30 microinches and a termination area of 196.85 microinches.

Mixed Contact 'D'

Mixed contact connectors suitable for making combined signal and power connections. Plug and socket options with solder bucket or 90° PCB terminations. Shell definition: 17W2 shell can have 17 mixed contacts in total. Shell is supplied with 15 signal contacts and has 2 cavities for power or coaxial contacts. Suitable for military, industrial or commercial applications and computer interfacing etc
