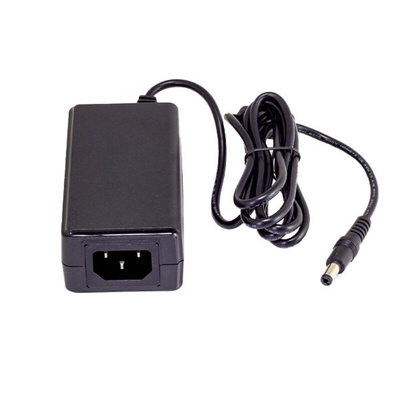

RS PRO 22.5W Plug-In AC/DC Adapter 9V Output, 2.5A Output

RS PRO AC/DC Adapter – 22.5W, 9V, 2.5A

Power up your equipment with this superb RS PRO 22.5 W, AC/DC adapter. Our desktop power supply features a universal input voltage with efficiencies of up to 85%. It is EN55032 and FCC part 15, CLASS B EMI compliant without external components, which makes it suitable for a wide range of industrial, instrumentation and communications applications.

Key Features

• 2.1x 5.5 mm output connector


• Input Plug Type: IEC 320 C14

Why Would You Choose an RS PRO AC/DC Adapter?

Our adapters are made with high-quality components and offer excellent protection and services. This device is perfect as a main power source in desktop applications or as a secondary backup power supply that you can store away in your carry case until it's required.

Features and Benefits

• Input voltage: 90-264V ac


• Input Plug Type: C14


• Natural convection cooling


• Operating temperature range 0 to 40 °C


• Output short circuit, over-current, over-voltage protection


• Output power: 22.5 W, Output voltage: 9V, Output current: 2.5A


• Output Connection Type: 2.1 mm Barrel Plug (2.1x5.5)


• Cable Length 1800 mm


• EN/UL 62368-1 safety approved.

Variants Available Separately

• 20W, 5V, 4A - RS stock no: 270-7412


• 15W, 7.5V, 2A - RS stock no: 270-7413


• 22.5 W, 9V, 2.5A - RS stock no: 270-7414


• 30W, 24V, 1.25A - RS stock no: 270-7415

Note

Power leads are not included in the offer. Please see the essential accessories for a selection of compatible leads.
