RS PRO PVC Crimp Housing, Clear

RS PRO PVC Clear Protective Sleeving, 19 mm Length

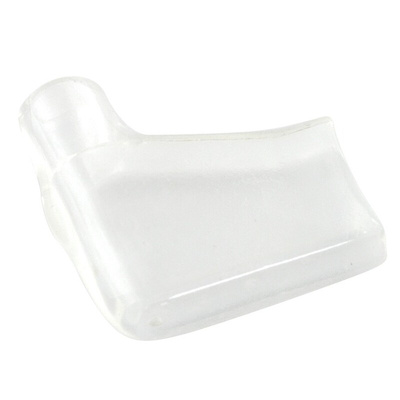

Need to provide physical and electrical protection for your crimped 90° connectors? Where you're crimping connectors at right angles, for example, if space is tight and you don't wish to bend the cable or wire, you can use a flag terminate to protect the join. This 19-mm, clear, protective sleeving flag receptacle will fit neatly over the connection to provide the coverage you need.
The female sleeving, from our trusted RS PRO range, is a 90°-angled, 6.3-mm push-on receptacle that can accept wires with cross-sectional areas of 0.75 mm² to 2.3 mm². Its walls are 1 mm thick.
The PVC (polyvinyl chloride) flexible plastic cover is durable, flame-retardant and insulating. It can be fitted before or after crimping the wire, reducing time-delaying mistakes. As it's RoHS compliant, it contains no hazardous materials.
For a suitable crimping tool, choose the RS PRO Plier Crimping Tool for Terminal, no. 488-1364.

Features and Benefits

• Clear female protective sleeving


• 90° angled shape


• PVC material for strength, insulation, and flame resistance


• Sleeve length of 19 mm


• Wall thickness of 1 mm


• Minimum cable area of 0.75 mm²


• Maximum cable area of 2.3 mm²


• RoHS compliant so no hazardous materials


• Complies with the ANSI/ESD and BS EN Electrostatic Control Standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size

Per Unit, RS stock no: 488-1342

Large Pack Size

RS stock no: 270-7443

RS PRO Datasheet
