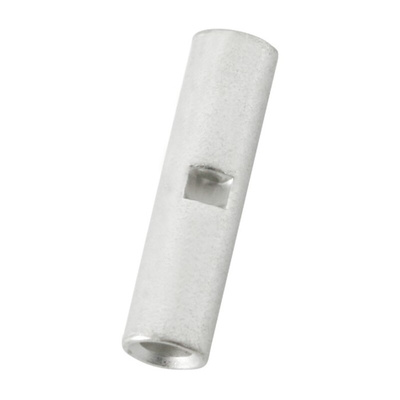

RS PRO Butt Splice Splice Connector, Silver, Tin 14 → 16 AWG

RS PRO Butt Splice Connector 16 to 14 AWG

Need to match, repair or lengthen wires quickly and easily? Turn to this RS PRO butt splice connector. Simply feed the wires into the holes on the splice's sides and use a crimper to squeeze down on each side of the indentation. This provides a secure and durable cable connection without the need for soldering. You can also use this splice connector to efficiently terminate single wires.
To improve insulation, enhance safety and minimise current leakage, use an adhesive heat shrink over the connector. The unit's sturdy structure prevents wire pull-outs and ensures that it doesn't split when crimped.
This product has undergone extensive testing to guarantee its reliability and quality. Non-insulated butt splice terminals are appropriate for most general cabling applications where short-circuiting is unlikely, such as in small electric appliances.

Features and Benefits

• Butt splice type


• Copper contact material


• Diameter of 3.9 mm


• Overall length of 16 mm


• Thickness of 0.8 mm


• Not insulated


• Wire size range of 16 to 14 AWG (American Wire Gauge) or 1.5 mm² to 2.5 mm²

Small Pack Size

Per Unit, RS stock no: 809-2375

Large Pack Size

RS stock no: 270-7452

RS PRO Datasheet
