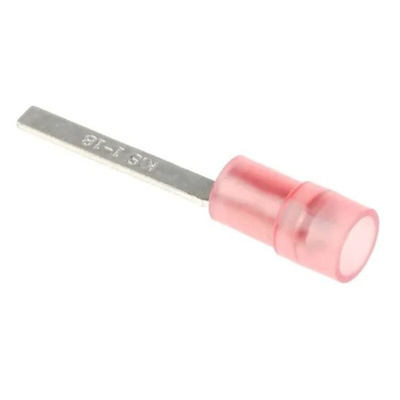

RS PRO Insulated Crimp Blade Terminal 18mm Blade Length, 0.5mm² to 1.5mm², 22AWG to 16AWG, Red

RS PRO Insulated Double Crimp Blade Terminals

RS PRO range of insulated double crimp hook blade terminals made from brass with a copper-sleeved barrel. These connectors have nylon insulation with a sturdy design, for optimum convenience. Being available in various colours, there is a suitable version for your application. All models are highly reliable and of excellent quality.
For ease of assembly, these terminals can be fitted to the connection end without soldering and come preinstalled with vinyl that protects the wire from vibrations. This results in a strong and robust connection joint.

Features & Benefits

• Gender: Male


• Insulation: Insulated


• Shrouded: Unshrouded


• Insulation Material: Nylon


• Various colours available


• Contact Material: Copper Contact Plating: Tin

Hook Blade Colour Code

• Red 0.5 - 1.5 mm²


• Blue 1 - 2.6 mm²


• Yellow 2.5 - 6.5 mm²

Note

Size quoted is blade length

Approvals

UL Listed; UL Listed for Canada

Note

Size quoted is blade length.

Approvals

UL Listed; UL Listed for Canada

Small Pack Size

Per Unit, RS stock no: 267-4473

Large Pack Size

RS stock no: 270-7462

RS PRO Datasheet
