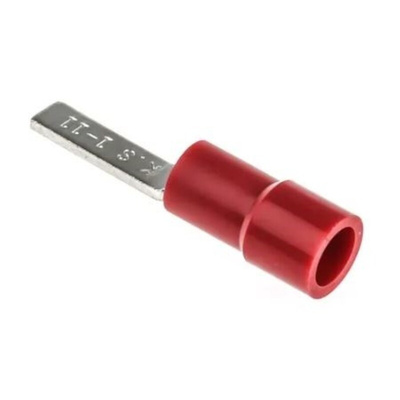

RS PRO Insulated Crimp Blade Terminal 11mm Blade Length, 0.5mm² to 1.5mm², 22AWG to 16AWG, Red

RS PRO Insulated Crimp Blade Terminal 11 mm Blade Length, 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG, Red

Terminate your stranded single-wire electrical connections without the need for soldering with this unshrouded crimp blade terminal from the RS PRO range. Its snug design protects the metal interior from corrosion.
A secure electrical connection is guaranteed with the crimped blade, which is made from a tin-plated copper contact material. Flared vinyl insulation protects your connection from damage. With an overall length of 21.8 mm and an inner diameter of 4 mm, this red terminal fits wire sizes 0.5 mm² to 1.5 mm² or 22 AWG to 16 AWG. The blade is 11 mm long, 3 mm wide and 0.75 mm thick.
Easy-to-use and versatile, this crimp blade terminal is often used by electricians. As part of the RS PRO range, this terminal has been stringently tested to ensure durability and safety.

Features and Benefits

• Unshrouded male crimp blade terminal


• Copper contact material with tin plating


• Vinyl insulation material


• Wire size of 0.5 mm² to 1.5 mm²


• American Wire Gauge of 22 AWG to 16 AWG


• Blade thickness of 1 mm with 4 mm length


• Blade width of 3mm


• Overall length of 21.8 mm


• Inner diameter of 4 mm


• Red in colour

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size

Per Unit, RS stock no: 613-9687

Large Pack Size

RS stock no: 270-7465

Approvals

UL (E125401)

RS PRO Datasheet
