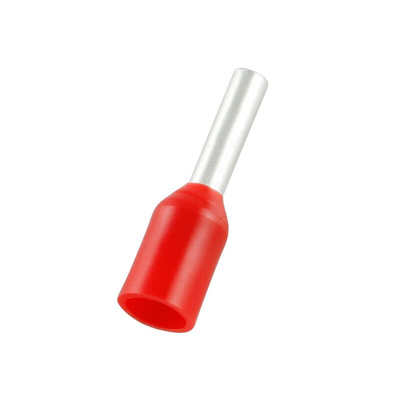

RS PRO Insulated Bootlace Ferrule, 6mm Pin Length, 1.7mm Pin Diameter, 1mm² Wire Size, Red

RS PRO Insulated Crimp Bootlace Ferrule, 6 mm Pin Length, 1.7 mm Pin Diameter, 1 mm² Wire Size, Red

This crimp bootlace ferrule from RS PRO is a metal tube with a red insulating collar used to end the connection of a range of different electrical installations. Compress the ferrule over a stranded wire to increase the reliability of your connection.
The nylon collar material is lightweight but has high compressive strength, so it will keep its shape better if subjected to force or the weight of a load. It's designed to be resistant to abrasion, corrosion and any buildups of friction that could cause wear over time, so it will last for longer.
The tin-plated treatment gives the ferrule a smooth, clean surface that will protect the interior copper terminal tube as it connects with your wire for a reliable connection. Use this ferrule with switching cabinets, function units or clamp connectors to protect the connection from interference and damage.

Features and Benefits

• Red colour
• Nylon insulation material
• Maximum wire size of 18 AWG (American Wire Gauge)
• Maximum wire size of 1 mm²
• One entry
• Overall length of 12 mm
• Pin diameter of 1.7 mm
• Pin length of 6 mm

The RS PRO Insulated crimp bootlace ferrule create a reliable electrical connection without the need for screws or spring clamps. Ferrules are a safe and reliable method of wiring, with no risk of over-tightening screws or shorting the circuit. They also provide strain relief for the wires and ensure that all the wires can be smoothly inserted into the connector, without any of them getting loose.

Red colour
One entry
Nylon insulation material

Small Pack Size

Per Unit, RS stock no: 178-7300

Large Pack Size

RS stock no: 270-7498

RS PRO Datasheet
