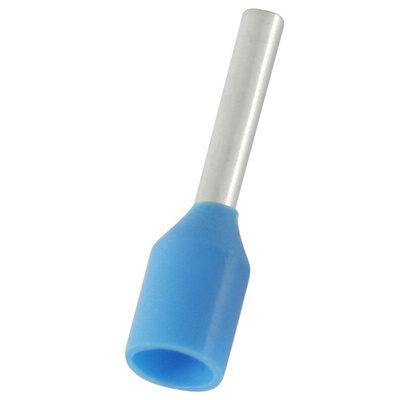

RS PRO Insulated Bootlace Ferrule, 8mm Pin Length, 1.5mm Pin Diameter, 0.75mm² Wire Size, Blue

RS PRO Insulated Crimp Bootlace Ferrule, 8 mm Pin Length, 1.5 mm Pin Diameter, 0.75 mm² Wire Size, Blue

When connection reliability is a necessity, RS PRO's bootlace ferrules can assist. They create a stable, dependable electrical connection, with no risk of being over-tightened or shorting the circuit. Ferrules are also easy to remove and reinstall time and time again, without any damage to the wire end, making it easy to change and reroute connections if needed.
These ferrules are crimped on the end. This allows the wires to be tightly grouped to assist with strain relief but without compromising the flexibility of the rest of the cable. The crimping can also help reduce oxidisation in the wire strands, as they leave less air space for air to seep into and cause corrosion.
The blue colour of this insulation will allow you to colour-code your cables to keep them organised and professional looking. The nylon insulation collar will also help protect the wires from potential damage.

Features and Benefits

• Blue colour
• Insulated insulation
• Nylon insulation material
• Maximum wire size of 20 AWG (American Wire Gauge)
• Maximum wire size of 0.75 mm²
• One entry
• Overall length of 14 mm
• Pin diameter of 1.5 mm
• Pin length of 8 mm

The RS PRO Insulated crimp bootlace ferrule create a reliable electrical connection without the need for screws or spring clamps. Ferrules are a safe and reliable method of wiring, with no risk of over-tightening screws or shorting the circuit. They also provide strain relief for the wires and ensure that all the wires can be smoothly inserted into the connector, without any of them getting loose.

Blue colour
One entry
Nylon insulation material

Small Pack Size

Per Unit, RS stock no: 178-7293

Large Pack Size

RS stock no: 270-7539

RS PRO Datasheet
