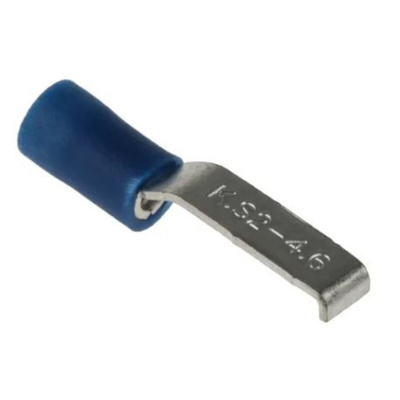

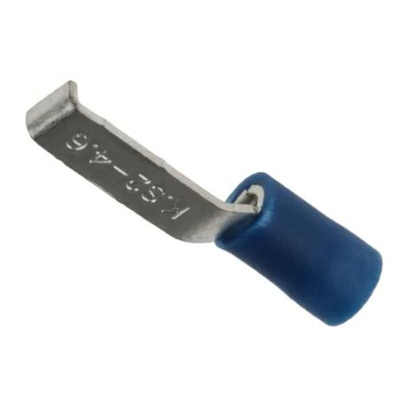

RS PRO Hooked Insulated Crimp Blade Terminal 17.4mm Blade Length, 1.5mm² to 2.5mm², 16AWG to 14AWG, Blue

RS PRO Hooked Insulated Crimp Blade Terminal 16.8 mm Blade Length, 1.5 mm² to 2.5 mm², 16 AWG to 14 AWG, Blue

These RS PRO hook blade terminals can be used to terminate the connection of a variety of electrical systems, such as lights and other household fixtures. They're reliable terminals that provide a secure electrical connection thanks to their copper contact point and tin contact plating.
These terminals come pre-insulated with vinyl to protect the wire from vibrations. For convenient assembly, they can be attached to the connection end without the need for soldering, giving you a strong and robust connection.
The funnel entry style ensures that the conductor is completely inserted into the terminal barrel, keeping it firmly in place and preventing a loose connection. The terminal is gas-tight to prevent the corrosion of the metal fixture, enhancing its reliability.

Features and Benefits

• Blade length of 16.8 mm


• Blade thickness of 0.8 mm


• Blade width of 4.6 mm


• Blue colour


• Copper contact material


• Tin contact plating


• Male gender


• Hooked


• Inner diameter of 4.5 mm


• Insulated


• Vinyl insulation material


• Maximum wire size of 14 AWG (American Wire Gauge)


• Maximum wire size of 2.5 mm²


• Minimum wire size of 16 AWG (American Wire Gauge)


• Minimum wire size of 1.5 mm²


• Overall length of 27.2 mm


• Unshrouded

Small Pack Size

Per Unit, RS stock no: 624-1235

Large Pack Size

RS stock no: 270-7604
