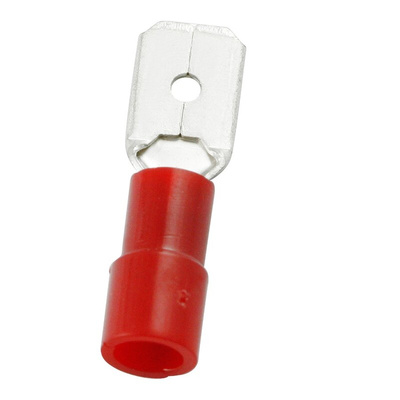

RS PRO Red Insulated Male Spade Connector, Tab, 0.8 x 6.35mm Tab Size, 0.5mm² to 1.5mm²

RS PRO Red Insulated Spade Connector, 0.8 mm x 6.35 mm Tab Size, 0.5 mm² to 1.5 mm²

This spade connector is ideal if you need a way to quickly connect and disconnect terminals. It's most often used to connect single wires to relays or components using a safe and reliable crimping method. The blade tab on the connector is made to fit 6.35 mm receptacles.
With tin-plated brass contacts, this connector has reliable strength and conductivity and is resistant to corrosion, oxidation and degradation. The connector is designed for crimp termination, a compression method of connection that doesn't need soldering. Suited for large and small cross-section wires, it creates mechanically-strong wire joints.
This RS PRO spade connector has been through extensive testing to meet strict safety requirements, and its polycarbonate insulation is also UL (Underwriters Laboratories) certified – an international standard for safety. Most commonly found in automotive electronics systems, connectors such as these can also be found in domestic appliances like washing machines.

Features and Benefits

• Red, male spade connector


• Polycarbonate insulation


• Wire size range of 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG


• Tab size of 0.8 mm x 6.35 mm


• Length of 22 mm


• Unshrouded


• Crimp termination method


• Brass contacts, with a tin-plated finish

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size

Per Unit, RS stock no: 613-9744

Large Pack Size

RS stock no: 270-7605

RS PRO Datasheet
