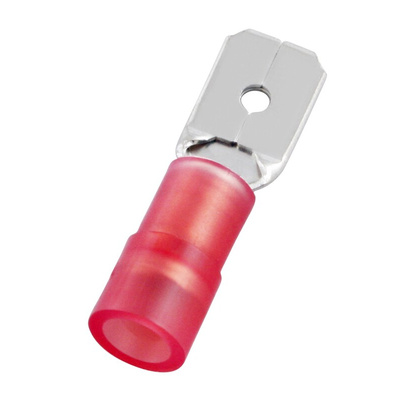

RS PRO Red Insulated Male Spade Connector, Tab Connector, 0.8 x 6.35mm Tab Size, 0.5mm² to 1.5mm²

RS PRO Red Insulated Crimp Tab Terminal, 0.8 x 6.35mm Tab Size, 0.5mm² to 1.5mm²

Link wires to components and relays safely and efficiently with this red crimp tab terminal. With a design that lets you make quick connections and disconnections without the need for soldering, this terminal from RS PRO lets you do the job easily.
Made to fit receptacles of 6.35 mm, the flared design of the nylon insulation allows you to insert wires more easily. It creates joints that are reliably and mechanically durable and is designed for the crimp termination of wires between the sizes of 0.5 mm² and 1.5 mm² (22 AWG to 16 AWG).
As part of the RS PRO range, this crimp tab terminal has been stringently tested for safety, quality and durability. Found in domestic appliances like washing machines and dishwashers, it is also commonly used in automotive electronics.

Features and Benefits

• Red, nylon-insulated crimp tab terminal


• Male connector


• Wire size range of 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG


• Tab size of 0.8 mm x 6.35 mm


• Length of 22 mm


• Unshrouded


• Brass contacts

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size

Per Unit, RS stock no: 267-4029

Large Pack Size

RS stock no: 270-7607

RS PRO Datasheet
