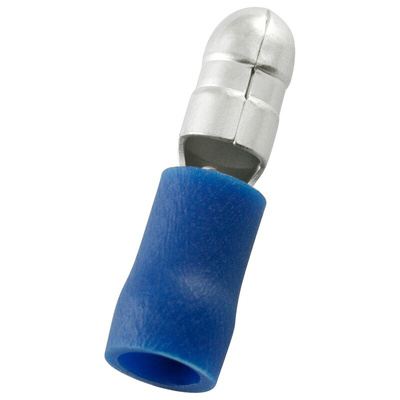

RS PRO Insulated Male Crimp Bullet Connector, 1.5mm² to 2.5mm², 16AWG to 14AWG, 5mm Bullet diameter, Blue

RS PRO Insulated Male Crimp Bullet Connector, 1.5 mm² to 2.5 mm², 16 AWG to 14 AWG, 5 mm Bullet Diameter, Blue

For a solder-free termination method, use this RS PRO crimp terminal bullet connector to terminate stranded or solid wire electrical connections. The wires are corrosion-resistant as the snug design ensures that moisture and oxygen are kept out of the connection.
The bullet crimp simply pushes in and snaps together for a secure connection, making installation simple. You can also double-crimp the connector onto the wire for an even stronger hold. For long-term conductivity, the contacts are made of highly conductive tin-plated copper. The vinyl insulation also protects your wiring from damage as it's resistant to cracking and chemicals.
The blue-coloured insulation makes it simple to identify your wires at a glance. This type of connector is commonly used in recording studios, theatres and automation applications.

Features and Benefits

• Bullet diameter of 5 mm


• Blue colour


• Brass contact material


• Tin contact plating


• Male gender


• Insulated


• Vinyl insulation material


• Maximum wire size of 14 AWG (American Wire Gauge)


• Minimum wire size of 16 AWG (American Wire Gauge)


• Maximum wire size of 2.5 mm²


• Minimum wire size of 1.5 mm²


• Overall length of 21.2 mm

Small Pack Size

Per Unit, RS stock no: 624-1162

Large Pack Size

RS stock no: 270-7609

RS PRO Datasheet
