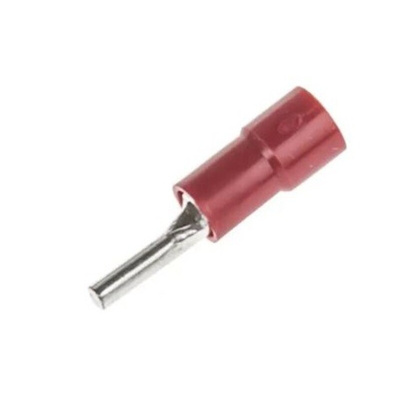

RS PRO Insulated, Tin Crimp Pin Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 1.9mm Pin Diameter, 9mm Pin Length, Red

RS PRO Insulated, Tin Crimp Pin Connector, 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG, 1.9 mm Pin Diameter, 9 mm Pin Length, Red

Need a quick and secure way to terminate electrical connections? Use this pin connector from RS PRO. It creates an air-tight crimp to prevent oxygen or moisture from getting through, protecting the metal interior against corrosion.
Thanks to its tin-plated copper contacts, this crimp blade ensures a reliable electrical connection. The vinyl insulation protects the connection against chemical and mechanical damage. You can also colour-code your wiring for ease of identification thanks to the red colour of the insulation.
You'll find this versatile connector used by electricians. It's suitable for a variety of applications as it can accommodate wires ranging in size from 22 to 16 AWG (American Wire Gauge).

Features and Benefits

• Red colour


• Copper contact material


• Tin contact plating


• Insulated


• Vinyl insulation material


• Maximum wire size of 16 AWG (American Wire Gauge)


• Minimum wire size of 22 AWG (American Wire Gauge)


• Maximum wire size of 1.5 mm²


• Minimum wire size of 0.5 mm²


• Overall length of 19.8 mm


• Pin diameter of 1.9 mm


• Pin length of 9 mm


• Unshrouded

Small Pack Size

Per Unit, RS stock no: 613-9621

Large Pack Size

RS stock no: 270-7622

RS PRO Datasheet
