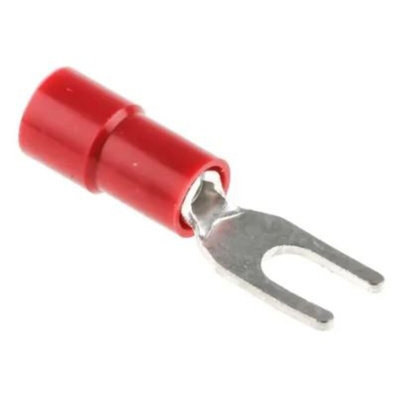

RS PRO Insulated Crimp Spade Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 3.2mm Stud Size Vinyl, Red

RS PRO Insulated Crimp Spade Connector, 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG, M3 Stud Size Vinyl, Red

An insulated crimp spade connector is what you need to connect electrical wires with screws and studs safely and reliably. This handy product from RS PRO lets you create an effective connection without having to get out the soldering iron. Simply insert the stranded wire into the tube and connect the flat fork using the screws.
This crimp spade connector is encased in a copper sleeve with tin plating to ensure effective signal conduction. The vinyl insulation material is flared, so you can insert the wires more easily. Its red colour coding denotes that it's designed for wire sizes in the 0.5 mm² to 1.5 mm² range. The terminal has an overall length of 22 mm, a width of 5.7 mm and a spade thickness of 0.75 mm.
Crimp spade connectors are popular with electricians and other professionals tasked with the installation and repair of electrical panels or wiring harnesses.

Features and Benefits

• 16 to 22 AWG (American Wire Gauge)


• Tin contact plating


• Copper contact material


• Crimp spade connector


• Red vinyl insulation


• Suits a wire size range of 0.5 mm² to 1.5 mm²


• Overall length of 22 mm


• Width of 5.7 mm


• Spade thickness of 0.75 mm


• M4 stud size (0.4 mm diameter terminal)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size

Per Unit, RS stock no: 613-9384

Large Pack Size

RS stock no: 270-7655

RS PRO Datasheet
