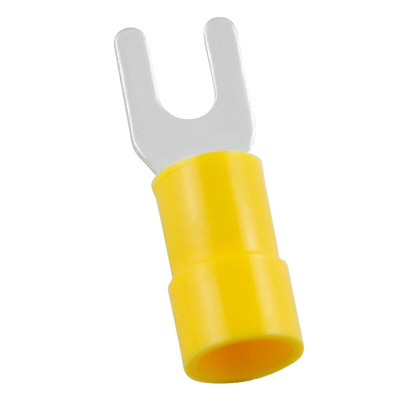

RS PRO Insulated Crimp Spade Connector, 4mm² to 6mm², 12AWG to 10AWG, 4.3mm Stud Size Vinyl, Yellow

RS PRO Insulated Crimp Spade Connector, 4 mm² to 6 mm², 12 AWG to 10 AWG, M4 Stud Size Vinyl, Yellow

This insulated crimp spade connector from RS PRO joins together electrical wires using screws and studs. These kind of terminals are often used when installing electrical panels and wiring harnesses or making repairs to cable assemblies.
To link your signal, insert the stranded wire into the tube and then use the screws to connect the fork. The connector is insulated in a casing of yellow vinyl that's flared to make inserting the wires easier. The colour indicates the correct wire size, which in this case goes from 4 mm² up to 6 mm². The connector has an overall length of 24.4 mm and is 7.2 mm wide, with a spade thickness of 1 mm.
This crimp spade terminal has an M4 stud size, corresponding to a diameter of 0.4 mm. For reliable conduction, all of RS PRO's quality crimp spade terminals are made from copper with tin plating.

Features and Benefits

• Crimp spade connector


• 10 to 12 AWG (American Wire Gauge)


• Tin contact plating


• Copper contact material


• Crimp spade connector


• Yellow colour-coded vinyl insulation


• Suits a wire size range of 4 mm² to 6 mm²


• Overall length of 24.4 mm


• Width of 7.2 mm


• Spade thickness of 1 mm


• M4 stud size (0.4 mm diameter terminal)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size

Per Unit, RS stock no: 613-9564

Large Pack Size

RS stock no: 270-7661

RS PRO Datasheet
